Low overall weight, fine-tuned chassis rigidity balance, 18”/17” radial tyres and suspension settings result in a bike with light, easy handling and easy manoeuvrability.
Liquid-cooled, DOHC, 8-valve 649 cm3 Parallel Twin with fuel injection delivers smooth, responsive performance, especially in the low and medium rpm ranges. The engine was tuned for rider-friendly power characteristics that will inspire confidence in new riders. The Vulcan S offers smooth starts from a standstill, smooth acceleration, and a satisfying pull when accelerating. The strong acceleration facilitates highway merging and passing.

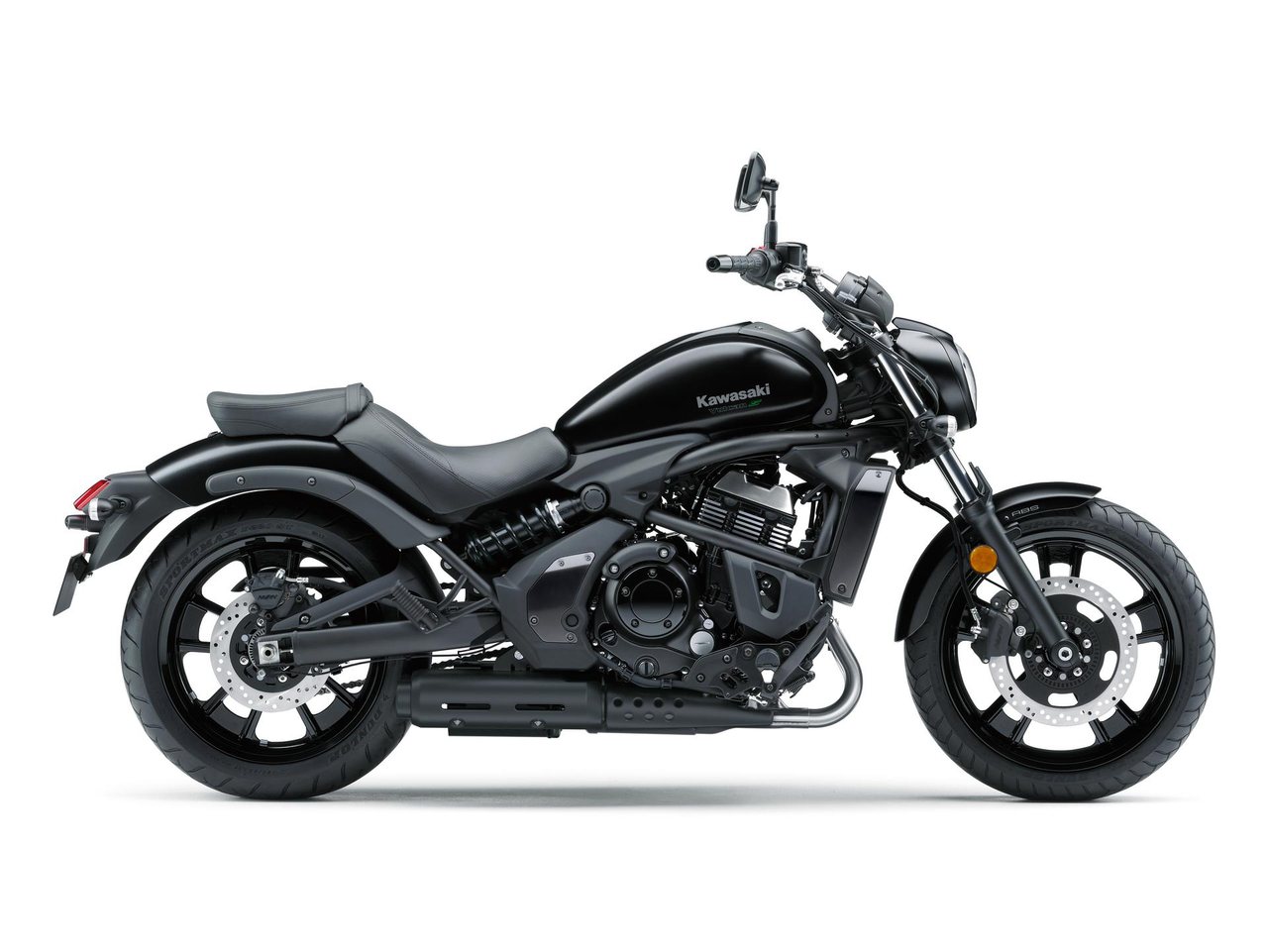

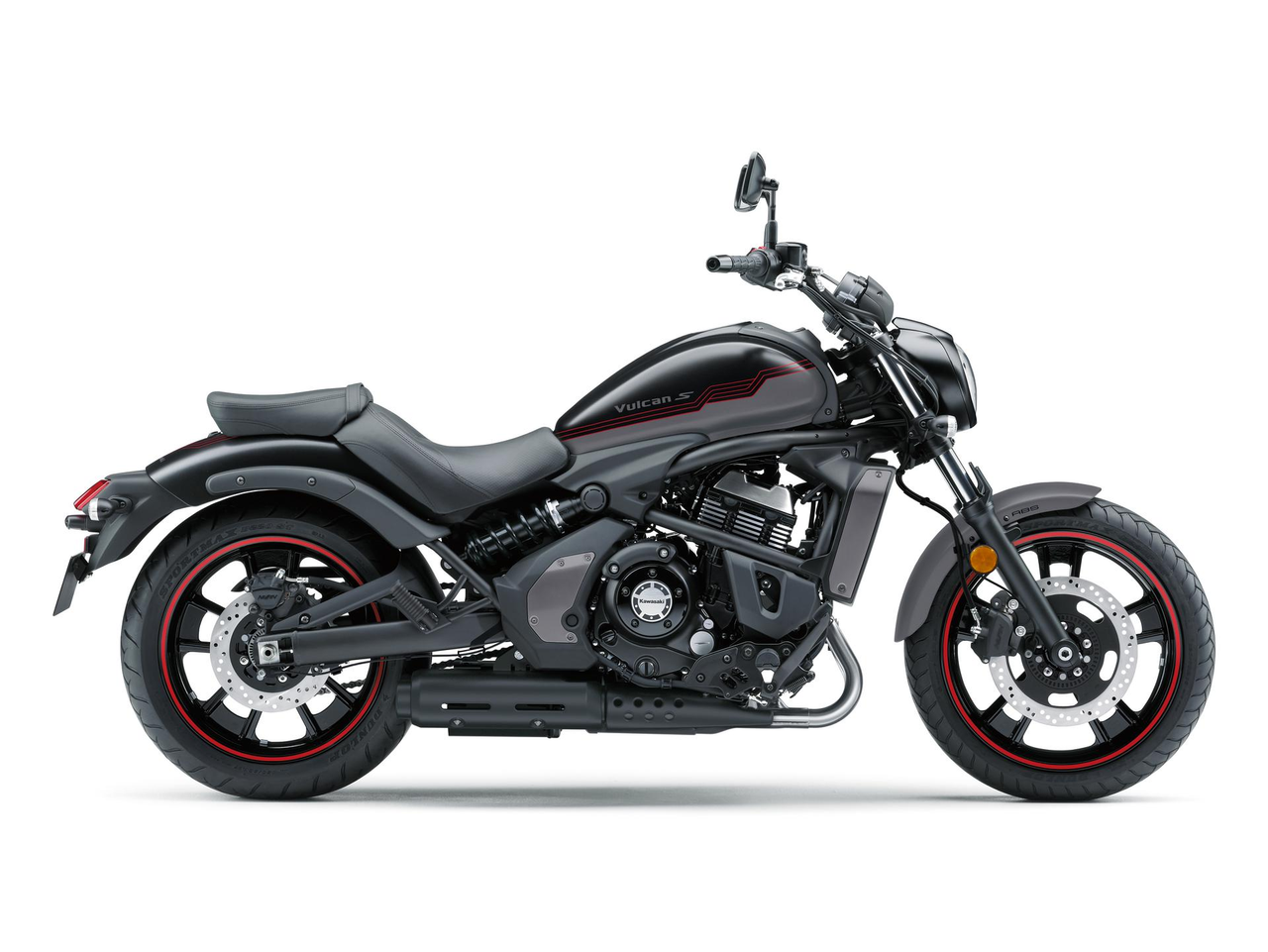

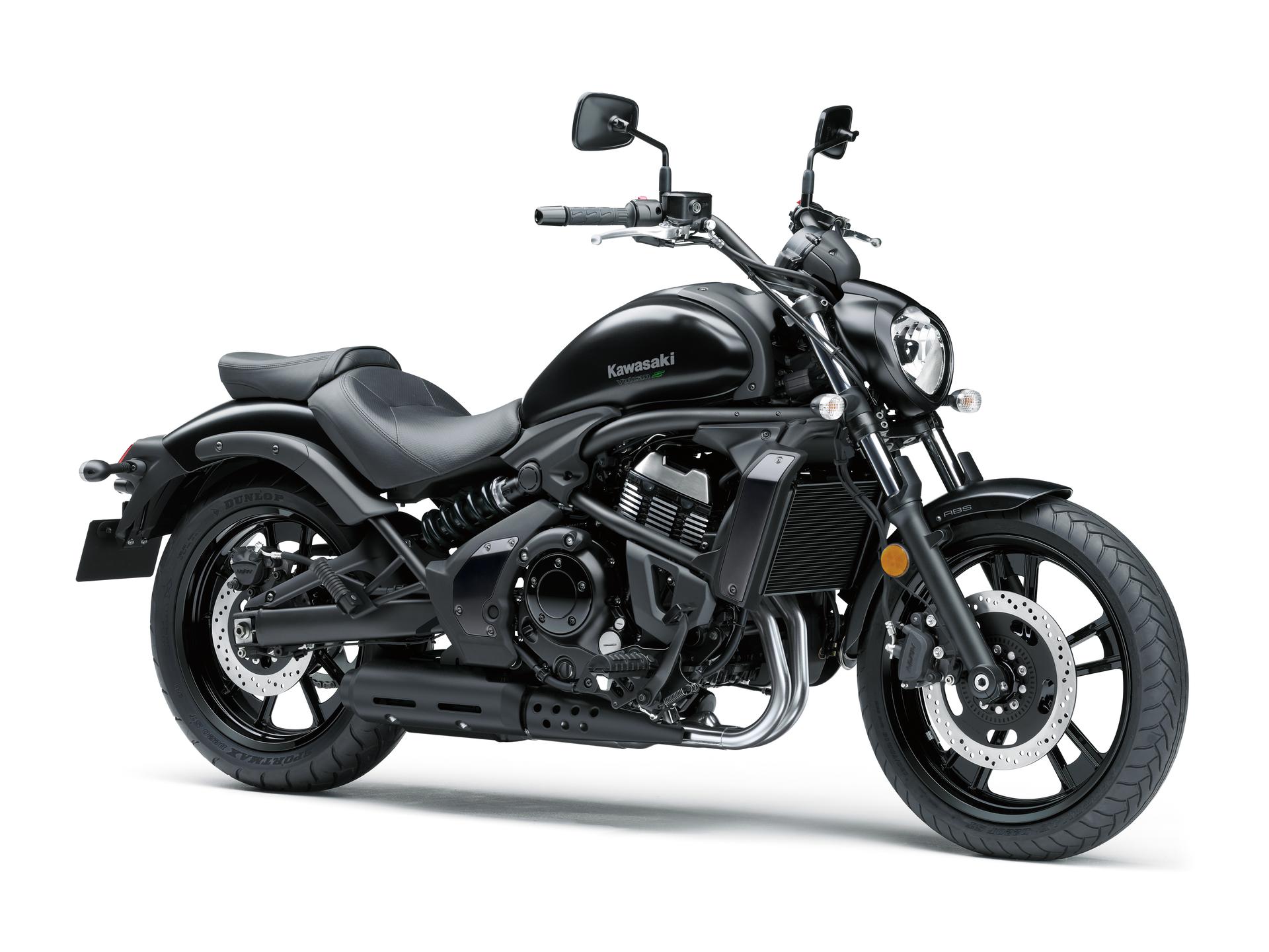

Flowing style with long-and-low stance and modern elements like the original headlamp and cast wheels with five spoke pair design give the Vulcan S very nontraditional cruiser looks.
Being able to easily put your feet on the ground when stopped is one of the most important factors in feeling comfortable on a motorcycle. At 705 mm, the Vulcan S’s low seat is very accommodating.
Multi-position levers allow riders to adjust lever position to suit hand size and preference.
The compact engine and slim frame result in a design that is narrow at the knees and feet. Forward positioned footpegs are ideal for relaxed, cruiser style riding.

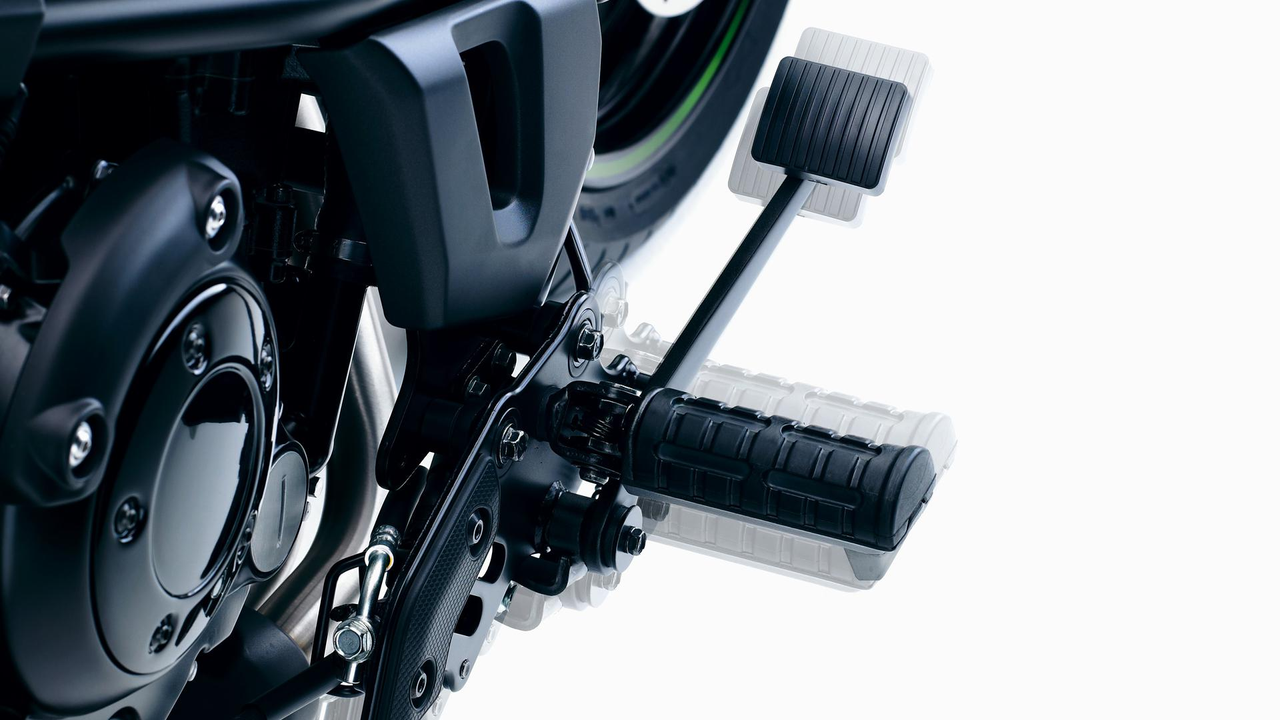

3-position footpegs allow riders to adjust foot position to suit size and preference. Three positions available: STD, 25 mm forward, 25 mm back.
With its 14 litre fuel tank capacity and the Parallel Twin engine’s good fuel economy, the long range offered by the Vulcan S means riders can go longer between fill-ups—convenient in town, and reassuring when out on a daytrip.
Muffler located under the engine contributes to a low centre of gravity, and is tucked out of the way, making it easier to reach the ground when stopped. The muffler’s design conveys both power and style.

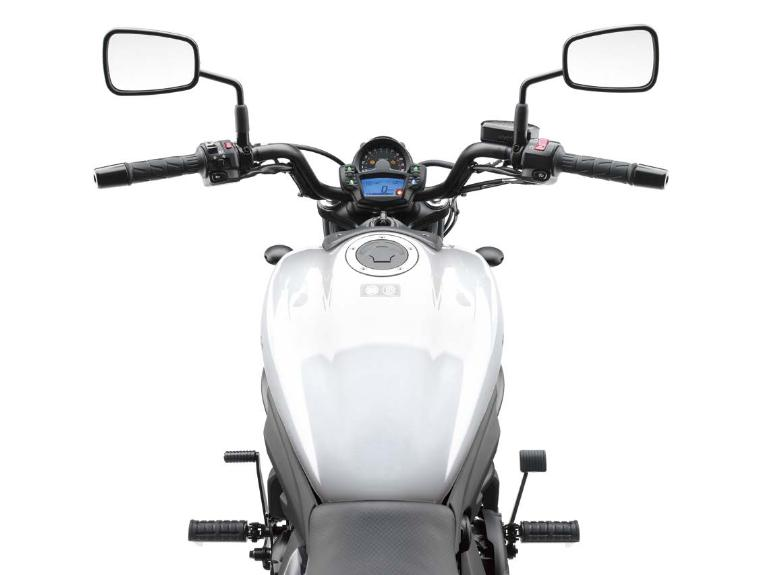

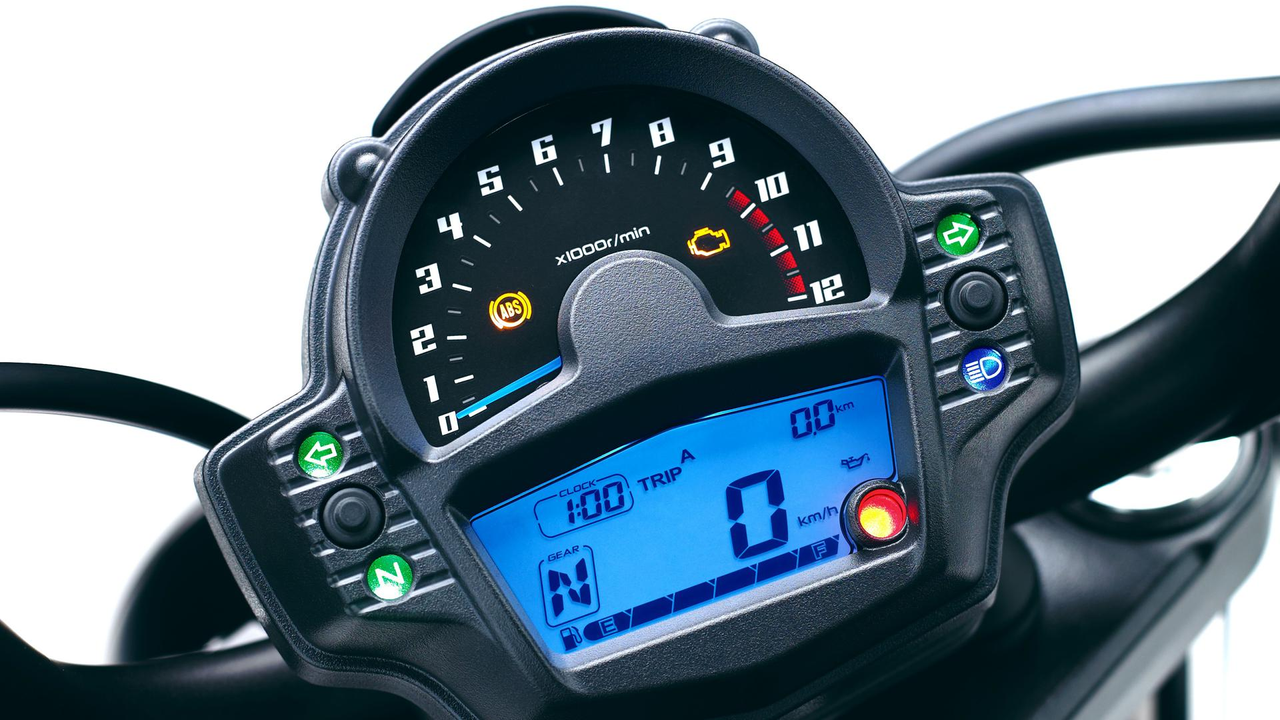

Original-design instrumentation cluster features an analogue-style tachometer and multi-purpose LCD. Convenient features keep riders fully informed of operating conditions. Including a gear indicator.
Wheelbase of 1,575 mm was chosen for a balance of light handling and superior riding stability. The same characteristics that make it fun to ride (light handling and relaxed, rider-friendly ergonomics), also make the Vulcan S ideal for new riders.

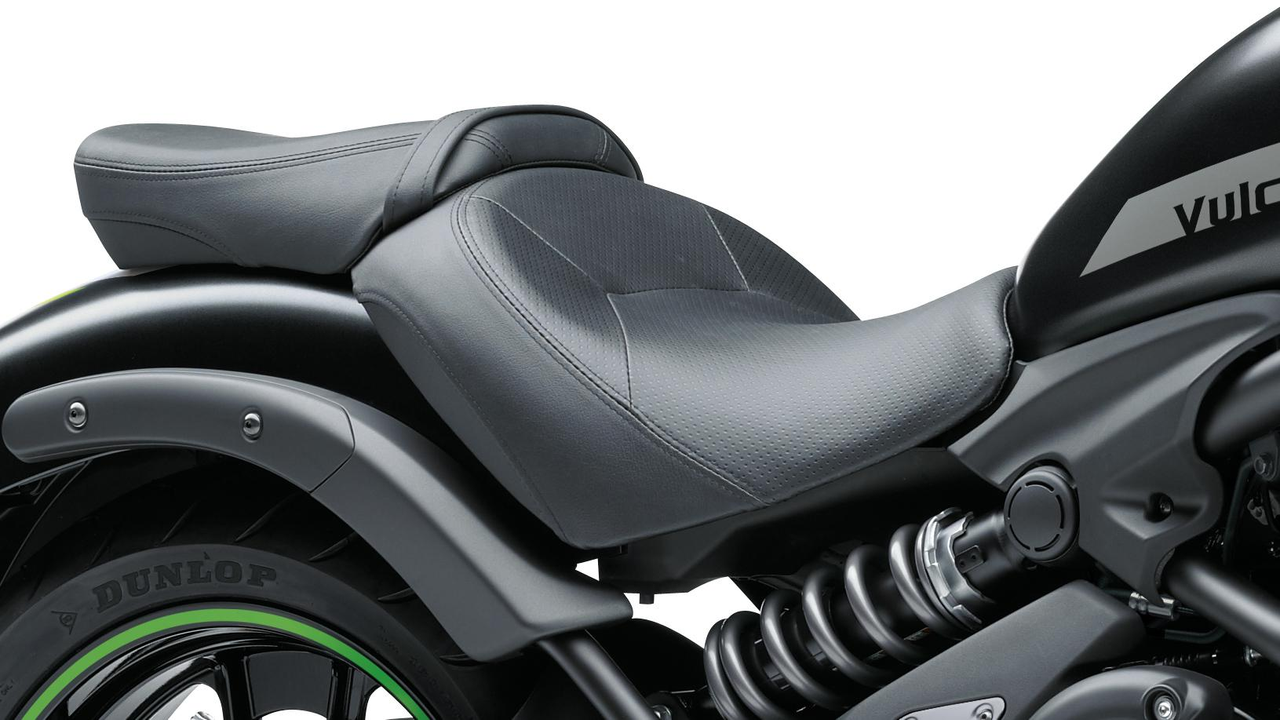

Sculpted seat design with thick padding offers excellent comfort and good hip support.
The design of the frame, rear suspension and swingarm create an integrated line running from the front of the bike to the rear hub. A pipe frame of high-tensile steel gives the bike a lightweight appearance. 3D analysis was used to achieve the target rigidity and stress values.

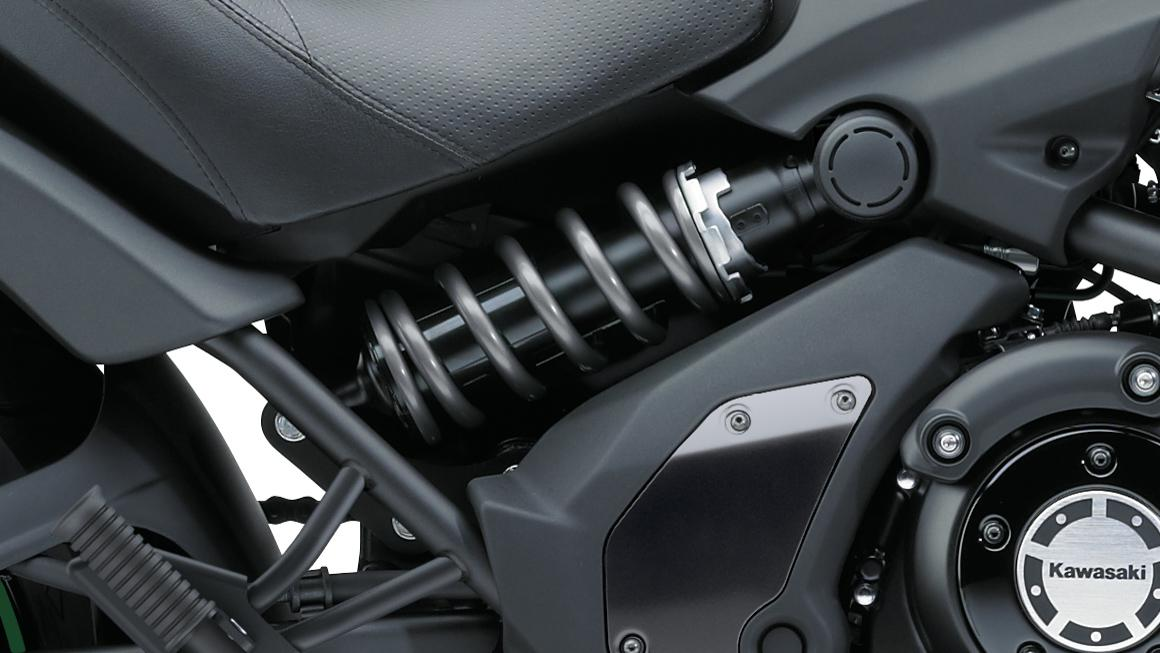

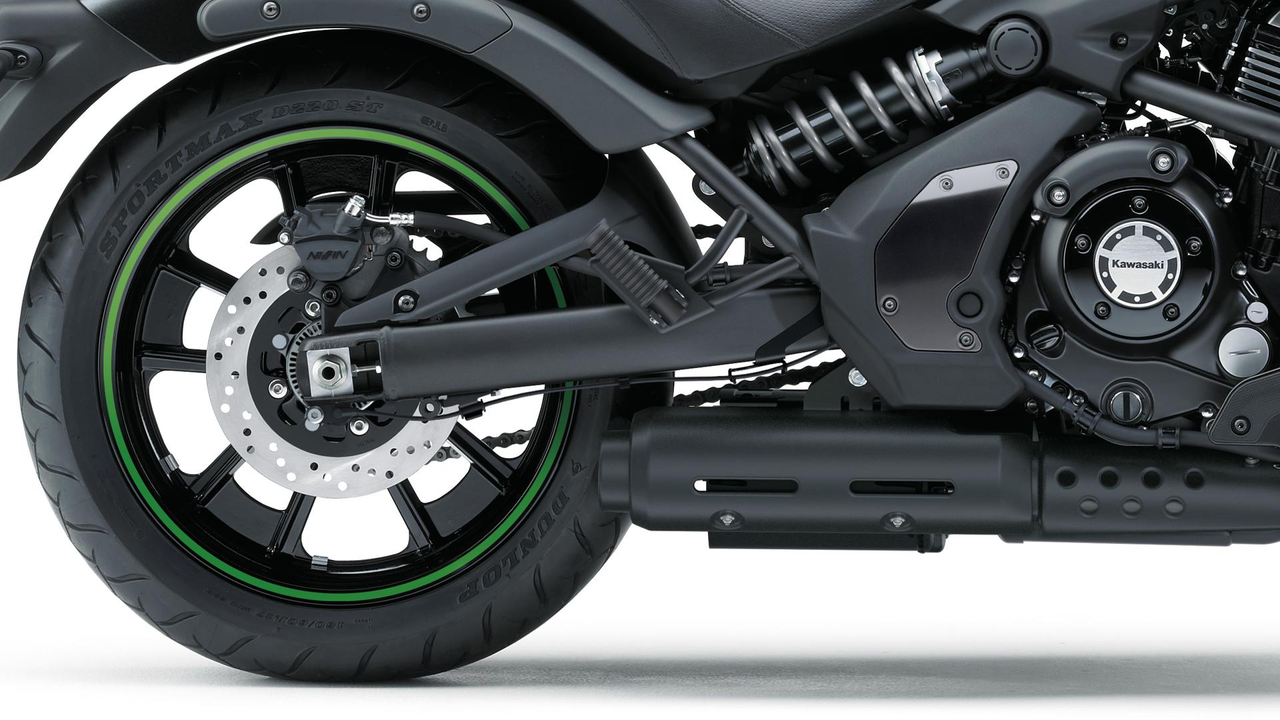

Offset laydown single-shock rear suspension is equipped with linkage to enable a longer stroke for increased ride comfort. The rear suspension arrangement also contributes to the bike’s compact design, freeing up space for a large-volume silencer under the engine. Rear shock features adjustable preload, with 7 positions to suit rider size and payload.

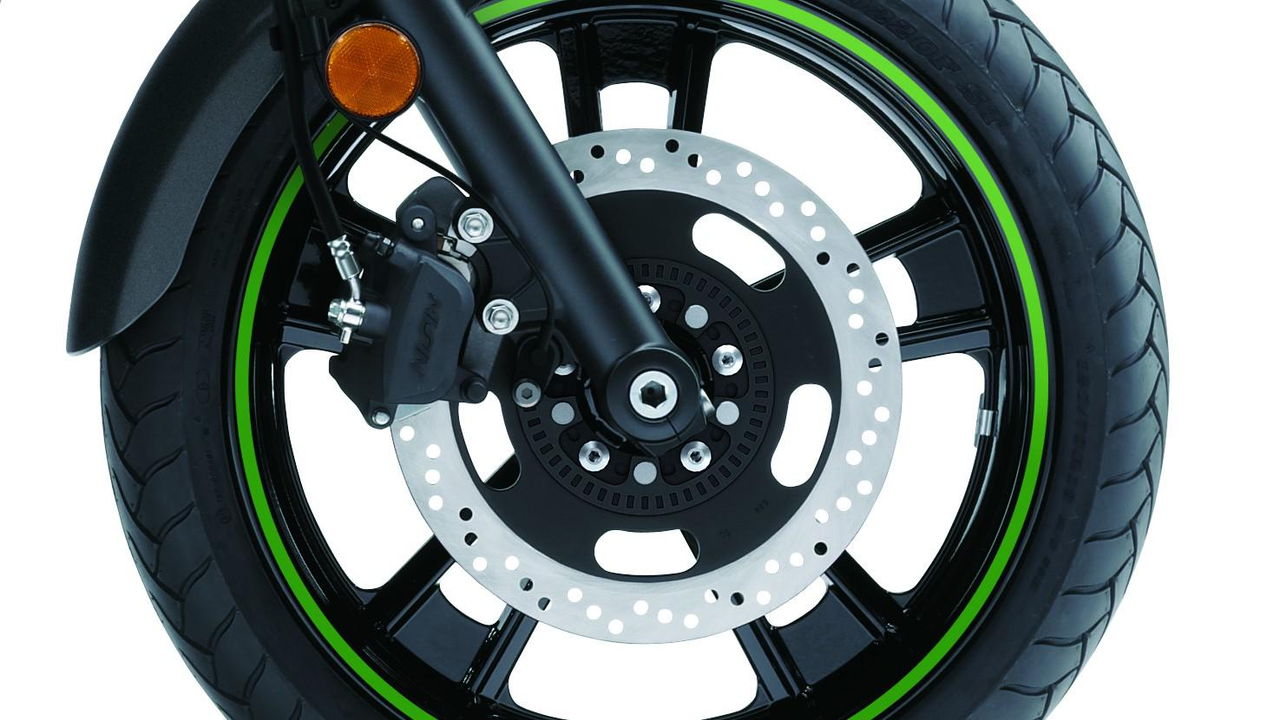

Large-diameter disc brakes balance ample stopping power with easy control for beginning riders.
Dual Throttle Valves offer increased power and greater ease of use care of a second set of ECU-controlled throttle valves.
ERGO-FIT is an interface system that allows a wide range of riders to feel at one with their machine.
The Economical Riding Indicator is a mark appearing on the instrument panel to indicate favourable fuel consumption, encouraging fuel efficient riding.
ABS (Anti-lock Brake System) ensures stable braking performance by preventing wheel lock during braking.
| Engine type | Liquid-cooled, 4-stroke, parallel twin |
|---|---|
| Compression ratio | 10.8:1 |
| Valve system | DOHC, 8 valves |
| Bore x stroke | 83.0 x 60.0 mm |
| Displacement | 649 cm³ |
| Fuel system | Fuel injection: 38 mm x 2 |
| Lubrication | Forced lubrication, semi‑dry sump |
| Starting system | Electric |
| Ignition system | Battery & Coil (transistorised ignition) |
| Maximum power | 44.7 kW {61 PS} / 7,500 rpm |
|---|---|
| Maximum torque | 62.4 N•m {6.4 kgf•m} / 6,600 rpm |
| CO2 emission | 104 g/km |
| Fuel consumption | 4.5 l/100km |
| CO2 emission 35 kW kit | 102 g/km |
| Fuel consumption 35 kW kit | 4.4 l/100km |
| Transmission | 6-speed, return shift |
| Clutch | Wet, multi disc |
| Primary reduction ratio | 2.095 (88 / 42) |
| Gear ratios 1st | 2.438 (39 / 16) |
| Gear ratios 2nd | 1.714 (36 / 21) |
| Gear ratios 3rd | 1.333 (32 / 24) |
| Gear ratios 4th | 1.111 (30 / 27) |
| Gear ratios 5th | 0.966 (28 / 29) |
| Gear ratios 6th | 0.852 (23 / 27) |
| Final reduction ratio | 3.067 (46 / 15) |
| Frame type | Tubular diamond, high-tensile steel |
|---|---|
| Trail | 120 mm |
| Wheel travel front | 130 mm |
| Wheel travel rear | 80 mm |
| Tyre, front | 120/70 R18 M/C 59H |
| Tyre, rear | 160/60 R17 M/C 69H |
| L x W x H | 2,310 x 880 x 1,100 mm |
| Steering angle L R | 35° / 35° |
| Wheel base | 1,575 mm |
| Ground clearance | 130 mm |
| Fuel capacity | 14.0 litres |
| Seat height | 705 mm |
| Curb mass | 229 kg |
| Front brake type | Single disc |
|---|---|
| Front brake diameter | Ø 300 mm |
| Front brake caliper type | Dual-piston |
| Rear brake type | Single disc |
| Rear brake diameter | Ø 250 mm |
| Rear brake caliper type | Single-piston |
| Front suspension type | Telescopic fork |
| Front suspension diameter | Ø 41 mm |
| Rear suspension type | Laydown offset single-shock, linkage equipped, and 7-way spring preload adjustability |
Purchase the Windscreen Fork Bracket as a required component to mount the Large or Medium Windscreen, or the Café Deflector, sold separately
Read More

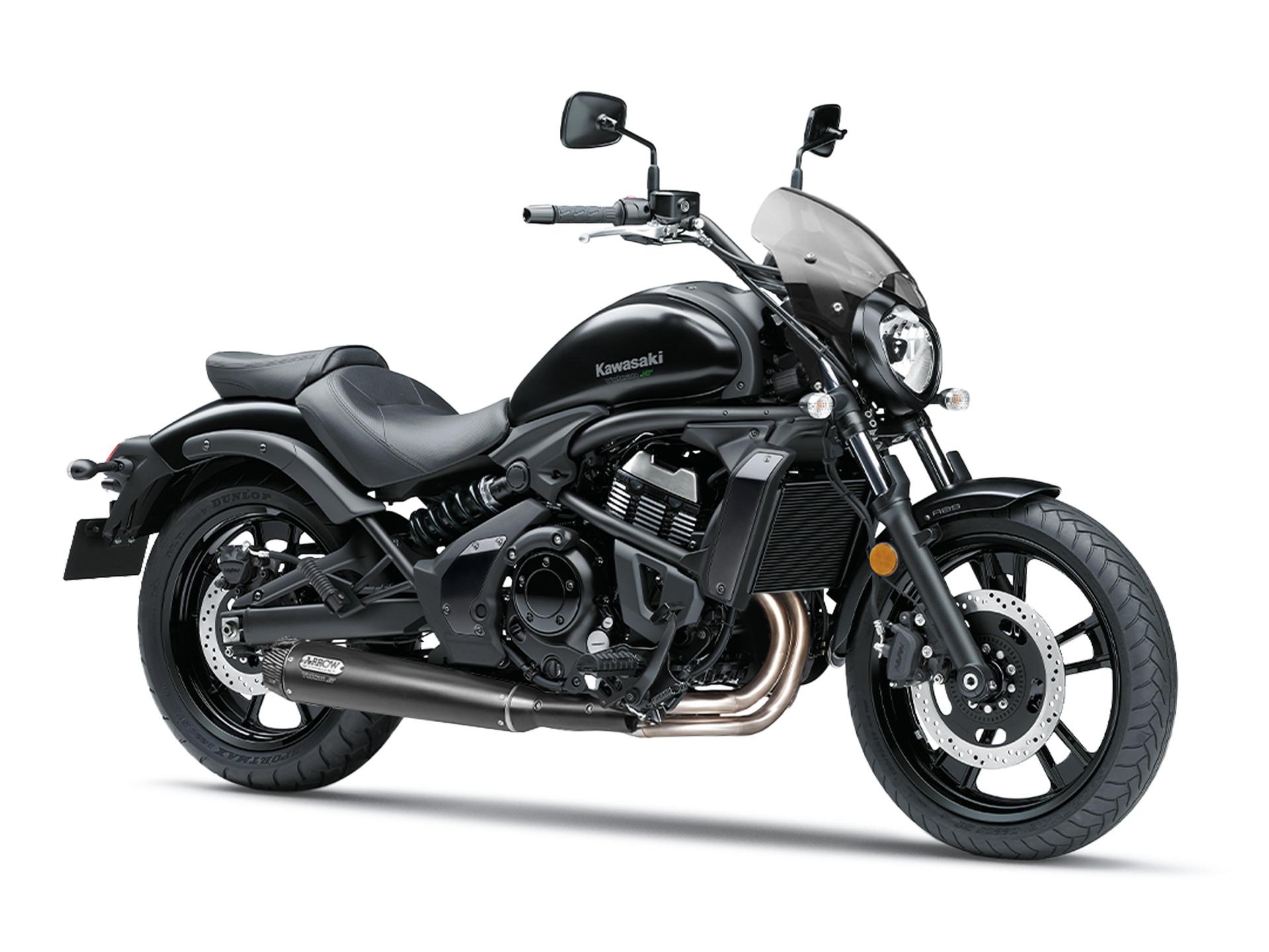

Arrow full exhaust system with catalyst and stainless steel muffler. This system is lighter compared to the stock exhaust system and gives a pure sporty sound.
Purchase the Saddlebag Support Set as a required component to mount the Saddlebag Set or Soft Saddlebag Set, sold separately.
Purchase the Fixed Windscreen Mounting Bracket as a required component to mount the Fixed Large or Medium Windscreen, sold separately.

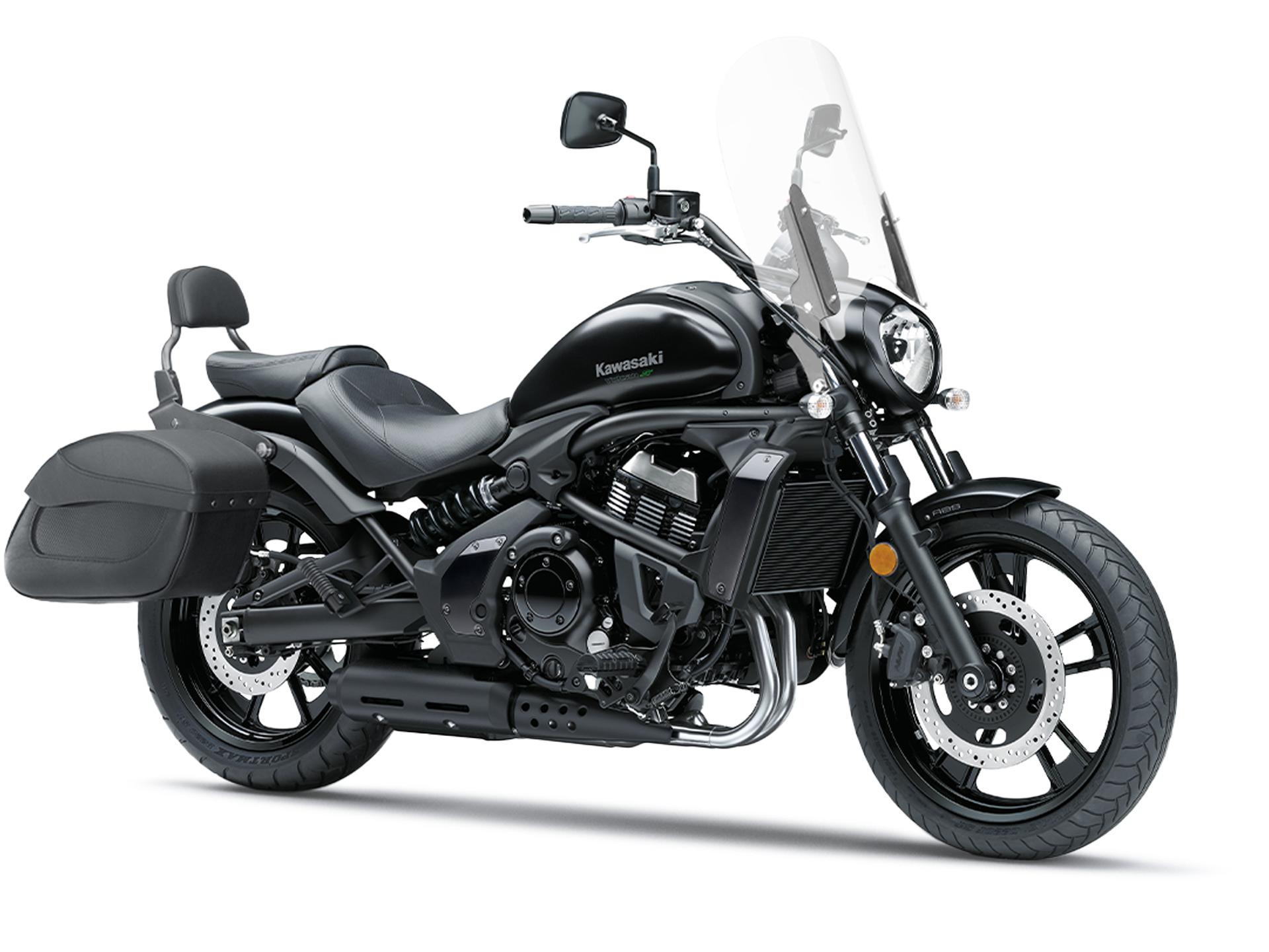

Clear touring screen made with polycarbonate plastic.
Keep your personal items secure on the road with saddlebags that complement the overall look of your bike. This black leather saddlebag set has reinforcements to keep the shape in all riding conditions. Quick release system inside the bag allows bags to be removed from the support easily without tools. Durable water-resistant marine grade vinyl with genuine leather trim. An interior pocket keeps important papers and documents separate and protected. A magnetic clasp closure on the lid makes accessing your goods convenient. KQR™ mounting system allows for easy installation of KQR™ Saddlebags once installed. (Load 2. 2kg per bag , Inner dimensions: H26 x L33 x D 13cm) Requires KQR™ bracket kit and saddlebag supports (sold separately)
Fixed padded backrest provides passenger comfort. Black steel construction rises 20cm from seat surface. Designed to fit optional luggage rack (sold separately) (Can only be combined with saddlebag kit with fixed brackets)
