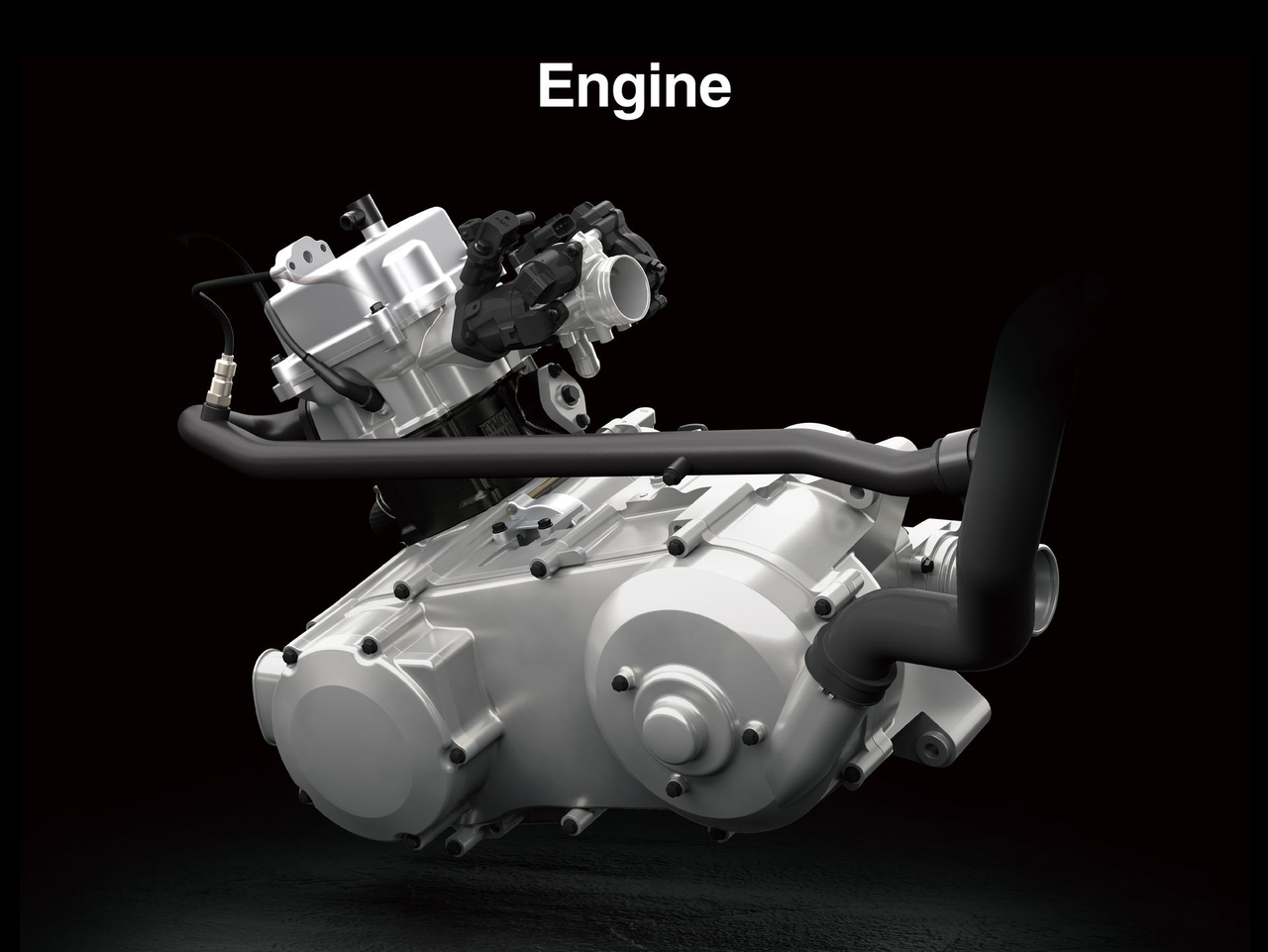

| Engine Type | Liquid-cooled, 4-stroke, single-cylinder |
|---|---|
| Compression ratio | 10.6:1 |
| Valve system | SOHC, 2 valves |
| Bore x stroke | 72.7 x 65.2 mm |
| Displacement | 271 cm³ |
| Fuel System | Fuel injection: 32 mm x 1 |
| Lubrication | Forced lubrication, wet sump |
| Starting system | Electric |
| Ignition | Full transistor digital ignition |
| Maximum power | 16.1 kW {22 PS} / 7,500 rpm |
|---|---|
| Maximum torque | 22.4 N•m {2.3 kgf•m} / 6,500 rpm |
| Transmission | CVT, 2-speed & reverse, automatic |
| Primary reduction ratio | 0.830~2.200 |
| Primary drive | Belt drive torque converter (CVT) |
| Final drive | Shaft |
| Final reduction ratio | 4.273 |
| Frame type | Double-cradle, steel |
|---|---|
| Rake | 3.5 ° |
| Trail | 16 mm |
| Wheel travel front | 135 mm |
| Wheel travel rear | 140 mm |
| Tyre, front | AT 22 x 7-10 |
| Tyre, rear | AT22 x 10-10 |
| L x W x H | 1,915 x 1,080 x 1,170 mm |
| Steering angle L/R | 39° / 39° |
| Wheel base | 1,165 mm |
| Ground clearance | 155 mm |
| Fuel capacity | 12.0 litres |
| Seat height | 845 mm |
| Curb mass | 250 kg |
| Parking brake | Rear disc (mechanical) |
|---|---|
| Front brake type | Dual discs |
| Front brake diameter | Ø 180 mm |
| Front brake caliper type | Single-piston |
| Rear brake type | Single disc |
| Rear brake diameter | Ø 180 mm |
| Rear brake caliper type | Single-piston |
| Front suspension type | Double wishbone with spring preload adjustability |
| Rear suspension type | Swingarm |
