- Features
- Specifications
Gas-assisted tilting cargo bed.
Gas-assisted tilting cargo bed facilitates accessing the engine.

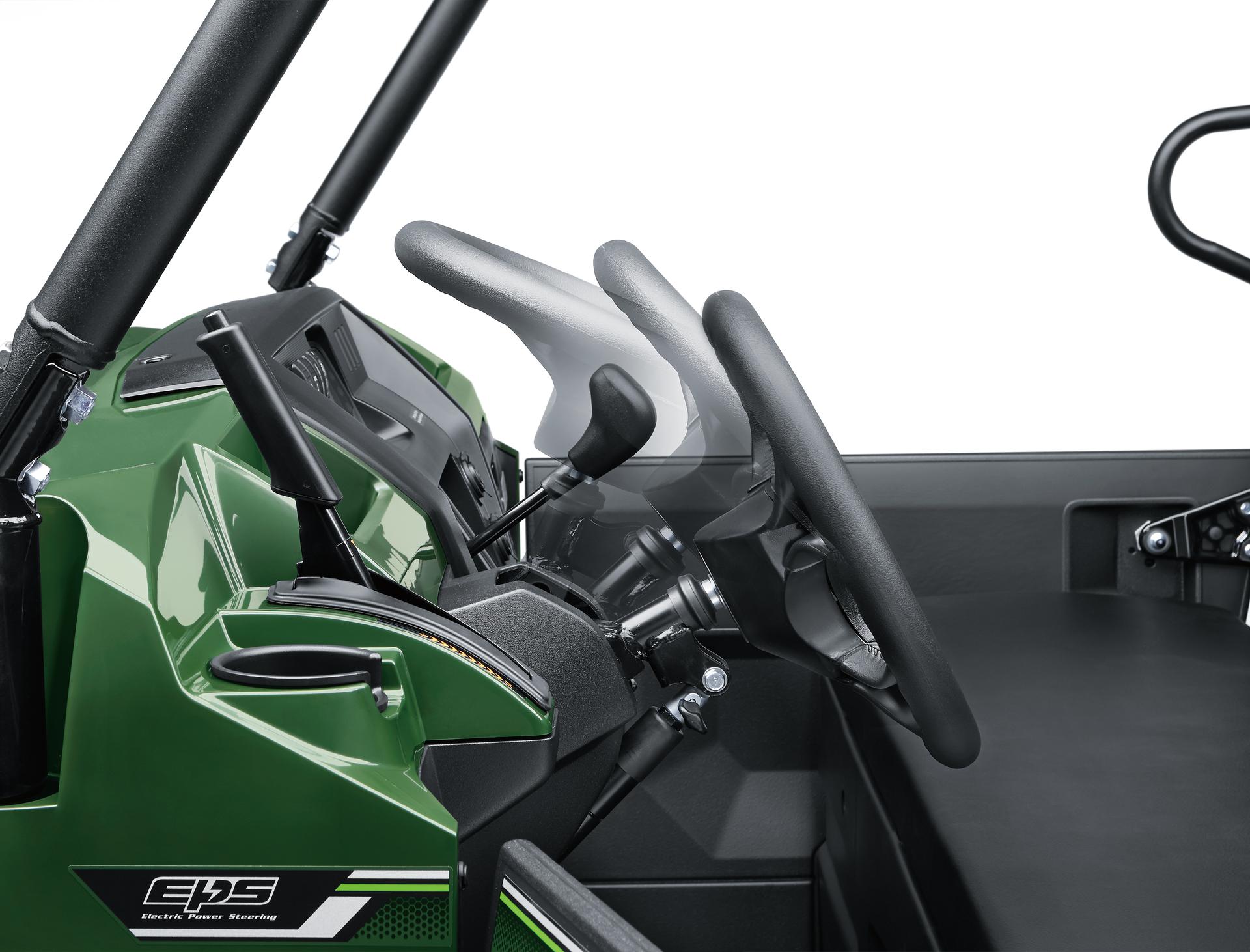

Tilt Steering
Steering wheel has a stepless adjustability range of approximately 34o, allowing drivers to set its position to suit their preference, as well as lift it out of the way to facilitate getting in and out of the vehicle.
Simple, Rugged Styling
Designed to reflect their tough construction and strong performance, the MULE PRO-DXT and PRO-DX feature rugged, no-nonsense styling similar to that found on high-quality pickup trucks.
One-minute, One-person Transformation
The Trans Cab system allows the MULE PRO-DXT to be transformed from four-person to two-person mode in less than a minute. The sliding cargo wall is integrated with the cargo bed making it possible for a single person to execute the transformation.
Quick conversion
To transform from four-person mode to two-person mode, release the seat latches and lift the cargo wall struts to disengage the cargo wall securing mechanism; fold the seat bottom out of the way; slide the cargo wall forward; lower the cargo wall struts and reattached the seat latches to secure the cargo wall.
Stable, Wide-body Chassis
The MULE PRO-DXT and PRO-DX combine a wide-body chassis with a 2,345 mm wheelbase. This contributes to riding stability and comfort, while offering easy operability and manoeuvrability.
Balanced Frame Stiffness
The rugged frame construction of the MULE PRO-DXT and PRO-DX ensures great durability as well as superb handling.
Digital Instrumentation
Multi-function display built into the dash is standard on all models.
Bright Headlights
Dual 55/60 W headlights and standard LED lights cut a bright path through the dark for clear visibility on night rides.
Electric Power Steering
Kawasaki’s high-grade electric power steering (EPS) system works best when you need it most: at extremely slow speed and when stopped.
Electrically Selectable 4WD & Rear Differential Lock
Electrically “selectable” 2WD/4WD and dualmode rear differential system allow easy changing between drive systems to suit changing terrain and applications.
Room for two
Then slide the cargo wall forward; lower the cargo wall struts and reattached the seat latches to secure the cargo wall.
Hydraulic Disc Brakes
Front and rear disc brakes ensure strong, sure stopping power. The hydraulic disc system offers predictable performance, delivering brake power that matches input at the brake pedal.
Room for four
Cargo bed side walls are hinged, allowing the front parts to fold out of the way when the cargo wall slides into its rearward position.
Cargo and Towing Capacity
The PRO-DXT also offers a spacious cargo bed. Cargo bed dimensions are 1,085 mm L x 1,363 mm W x 279 mm H in two-person mode, 560 mm x 1,363 mm x 279 mm in four-person mode.
Powerful 993 cm3 Diesel Engine
In addition to on-site fuel compatibility, the high-torque three-cylinder diesel engine of the MULE PRO-DXT and PRO-DX offers excellent performance for hauling loads, as well as easy low-speed control. Vehicle top speed is up to 30 mph.
Engine
| Engine Type | Liquid-cooled, 4-stroke, three-cylinder |
|---|---|
| Compression ratio | 23.5:1 |
| Valve system | OHV, 6 valves |
| Bore x stroke | 74.0 x 77.0 mm |
| Displacement | 993 cm³ |
| Fuel System | Fuel injection with in-line |
| Lubrication | Forced lubrication, wet sump |
| Starting system | Electric |
Performance & Transmission
| Maximum power | 17.8 kW {24 PS} / 3,600 rpm |
|---|---|
| Maximum torque | 52.1 N•m {5.3 kgf•m} / 2,400 rpm |
| Transmission | 2-speed & reverse, automatic |
| Primary reduction ratio | 3.334 ~ 0.756 |
| Primary drive | Belt drive torque converter (CVT) |
| Final drive | Shaft 2WD/4WD, dual-mode differential |
| Final reduction ratio | F: 6.382 (31/17 x 35/10) - R: 6.245 (31/21 x 55/13) |
Frame & Dimensions
| Frame type | Ladder type, tubular steel |
|---|---|
| Rake | 4.4 ° |
| Wheel travel front | 222 mm |
| Wheel travel rear | 217 mm |
| Tyre, front | 26 x 9.00-12 4PR |
| Tyre, rear | 26 x 11.00-12 4PR |
| L x W x H | 3,385 x 1,625 x 1,970 mm |
| Steering angle L/R | 40° / 31° |
| Wheel base | 2,345 mm |
| Ground clearance | 260 mm |
| Fuel capacity | 30.0 litres |
| Seat height | 880 mm |
| Curb mass* | 883 kg |
| | *Curb mass includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
| Estimated dry weight** | 844 kg |
| | **Estimated Dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
Brakes & Suspension
| Parking brake | Dual discs (mechanical) |
|---|---|
| Front brake type | Dual discs |
| Front brake caliper type | Dual-piston |
| Rear brake type | Dual discs |
| Rear brake caliper type | Single-piston |
| Front suspension type | Double wishbone |
| Rear suspension type | Double wishbone |
Accessories

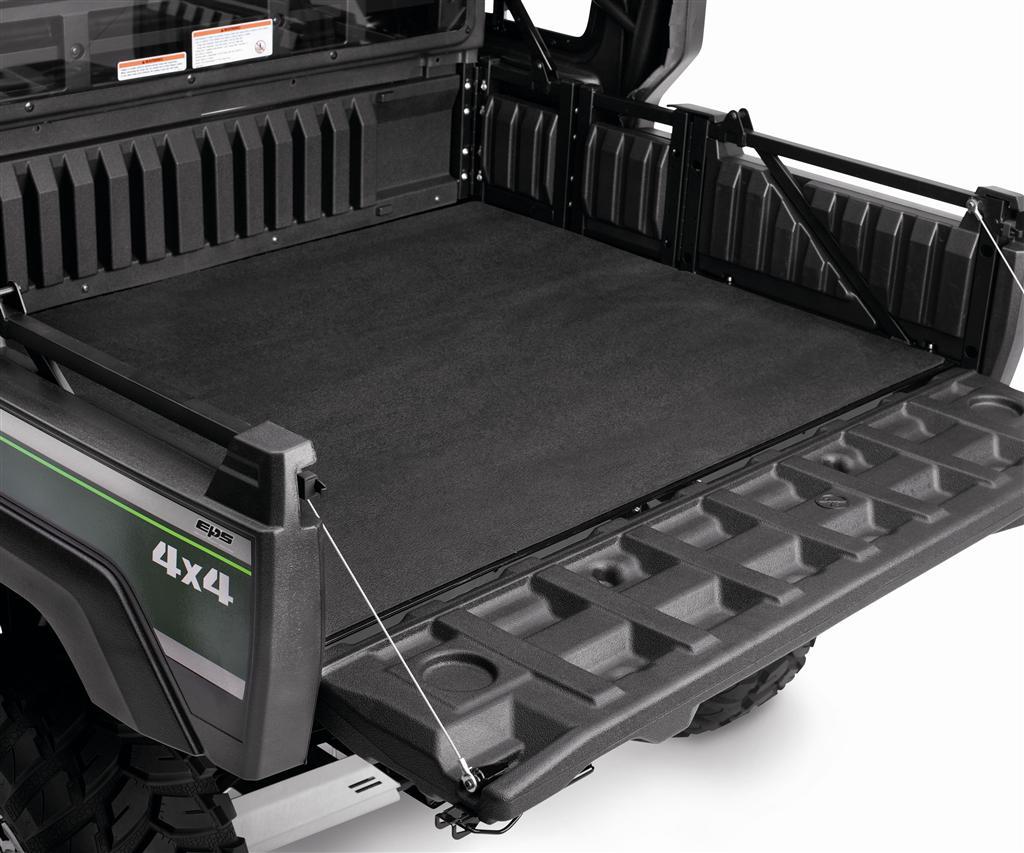

Bed Liner
Protect your cargo bed base with these tough 3/16” (4.76mm) extra thick rubber mats.
- Unique two-piece design does not interfere with transition from long to short bed mode
- Extra thick rubber prevents cargo from sliding
- Reduces sound levels caused from vibration
- 3/16” (4.76mm) thick black molded rubber
- Front and rear Cargo Mats Included
Heavy-Duty Springs
Increase bottoming resistance when carrying a heavy load and/or when using heavy accessories such as a Hard Cabin.
- Optional on MULE PRO-DX / MULE PRO-DXT
- Steel springs with gloss black finish
- Two front springs and two rear springs included
- Direct replacement of stock springs
- Sold as a set of 4
Wiper Set
Part Number: 022CAT0044 – Wiper Set for MULE PRO-DX/DXT.
Modular Parts:
- 022CAT0043A: Windscreen + Wiper + Washer
- 022CAT0026: Steel Roof Panel
- 022CAT0026A: Plastic Roof Panel
- 022CAT0027(A): Rear Panel*
- 022CAT0028: Door Set
- 022CAT0044: Wiper Set
- 022CAT0045: Washer Set
- 42S08U01S02: Heater Set (accessory fuse kit recommended)
Image shown is 022CAT0020A– MULE PRO-DX Hard Cabin Kit with Doors with Sliding Windows.
Washer System
Part Number: 022CAT0045 – Washer Set for MULE PRO-DX/DXT.
Modular Parts:
- 022CAT0043A: Windscreen + Wiper + Washer
- 022CAT0026: Steel Roof Panel
- 022CAT0026A: Plastic Roof Panel
- 022CAT0027(A): Rear Panel
- 022CAT0028: Door Set
- 022CAT0044: Wiper Set
- 022CAT0045: Washer Set
- 42S08U01S02: Heater Set (Accessory Fuse Kit recommended)
Image shown is 022CAT0020A– MULE PRO-DX Hard Cabin Kit with Doors with Sliding Windows.
Floor Mat Set (Front)
Supplied as a pair (front) with all fixings included, these hardwearing -SBR*- mats feature a honeycomb surface design to ensure high levels of grip in all conditions, model specific full coverage fitment and Mule logos. Due to their nature of rubber, they can reduce noise levels.
- Key features
- Tailored fit
- Modern design with sidewall - to keep dust, mud and water contained
- Easy installation / removal
- Easy cleaning; with water and non-abrasive substances
- Czech manufacturer; working for worldwide known automotive OEM references
*SBR: styrene-butadiene rubber
Heater Assembly
Part Number: 42S08U01S02 – Heater Assembly for MULE PRO-DX/DXT.
Modular Parts:
- 022CAT0043A: Windscreen + Wiper + Washer
- 022CAT0026: Steel Roof Panel
- 022CAT0026A: Plastic Roof Panel
- 022CAT0027(A): Rear Panel
- 022CAT0028: Door Set
- 022CAT0044: Wiper Set
- 022CAT0045: Washer Set
- 42S08U01S02: Heater Set (accessory fuse kit recommended)
Air Intake Kit
High Air Intake Kit (Snorkel) pulls cleaner air for the engine from higher up in the vehicle and helps prevent premature clogging in extremely dusty environments.
Can not be combined with cabin.
Cargo Bed Extender
Maximize cargo space with this durable, black-finished plastic bed extender—designed to latch securely and work seamlessly with your vehicle.
- Attaches to bed rails using two KQR Accessory Mounts
- Adjustable clamps slide forward or backward
- Reversible design functions as a divider
- Two KQR Accessory Mounts required (not included)
Rearview Mirror
3D curved safety glass provides increased field of view
- Textured black powder coating
- Cast aluminum mounting that works with 38.1mm (1 ½”) to 45mm (1 7/8”) diameter tubes
- 273mm (10 ¾”) L x 89mm (3 ½”) H
Can also be used in combination with the Hard Cabin for Mule Pro-MX and Mule SX. Unfortunately not in combination with the Mule Pro-DX & DXT hard cabin, with roof.
Rear View Mirror
3D curved safety glass provides increased field of view.
- Textured black powder coating
- Cast aluminum mounting that works with 38.1mm (1 ½”) to 45mm (1 7/8”) diameter tubes
- Dimensions: 273mm (10 ¾”) L x 89mm (3 ½”)
- Fits MULE SX, MULE PRO-MX, MULE PRO-DX, MULE PRO-DXT
Can also be used in combination with the Hard Cabin for MULE PRO-MX and MULE SX.
Not compatible with the MULE PRO-DX & DXT Hard Cabin with Roof.
- Bed Liner
- Silent Board (Noise Panel)

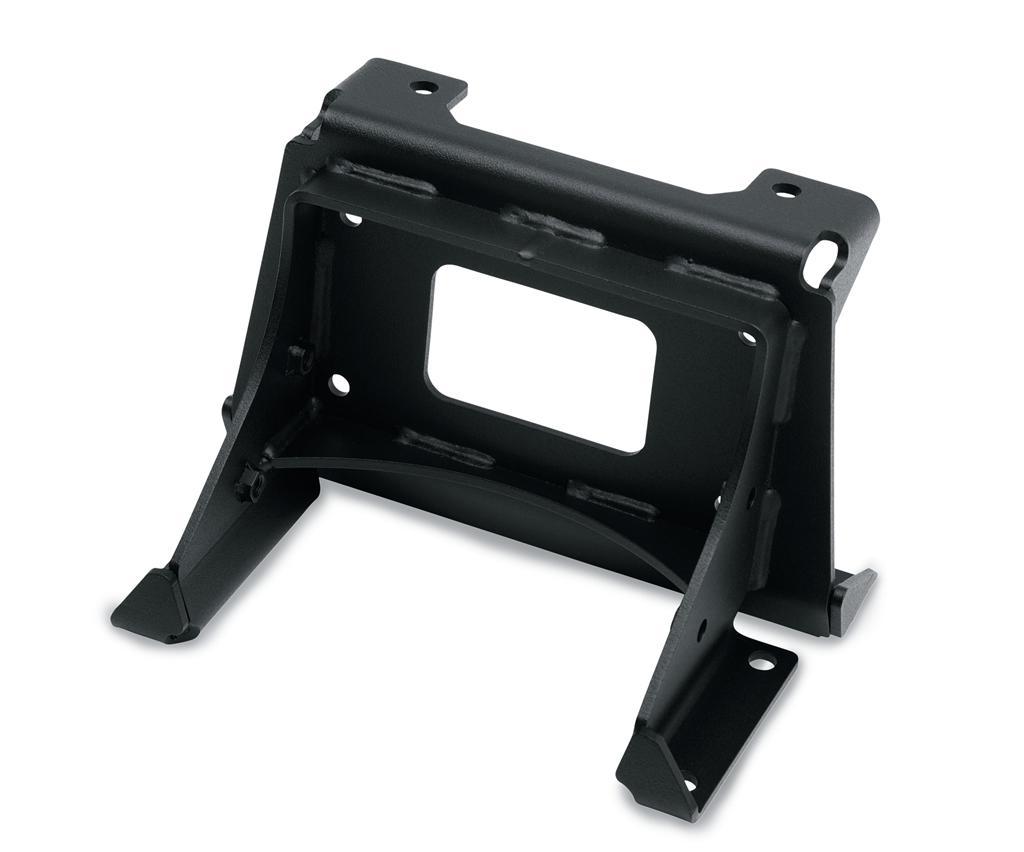

- Winch Mount
- Heavy-Duty Springs
- Wiper Set

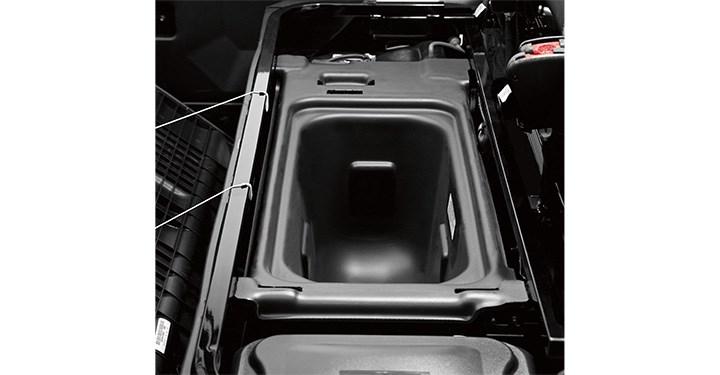

- Under-Seat Storage Bin
- Fuse Kit
- Washer System
- Floor Mat Set (Front)

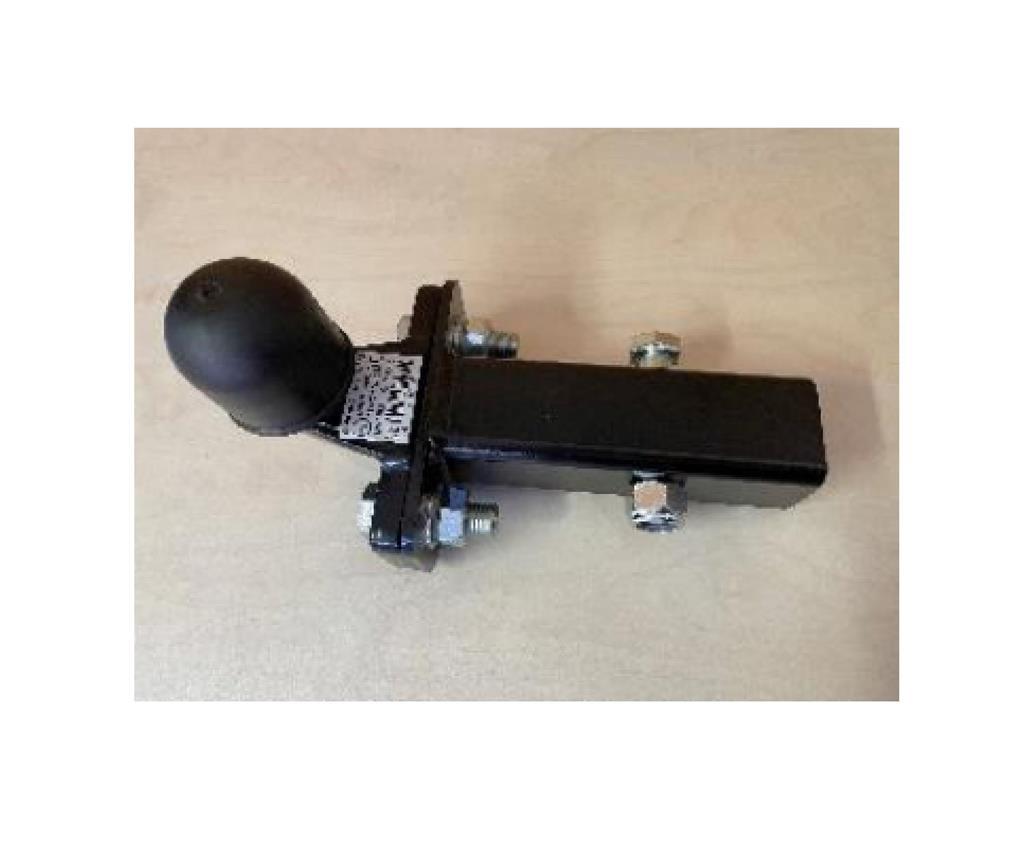

- Bracket with EU Tow Ball
