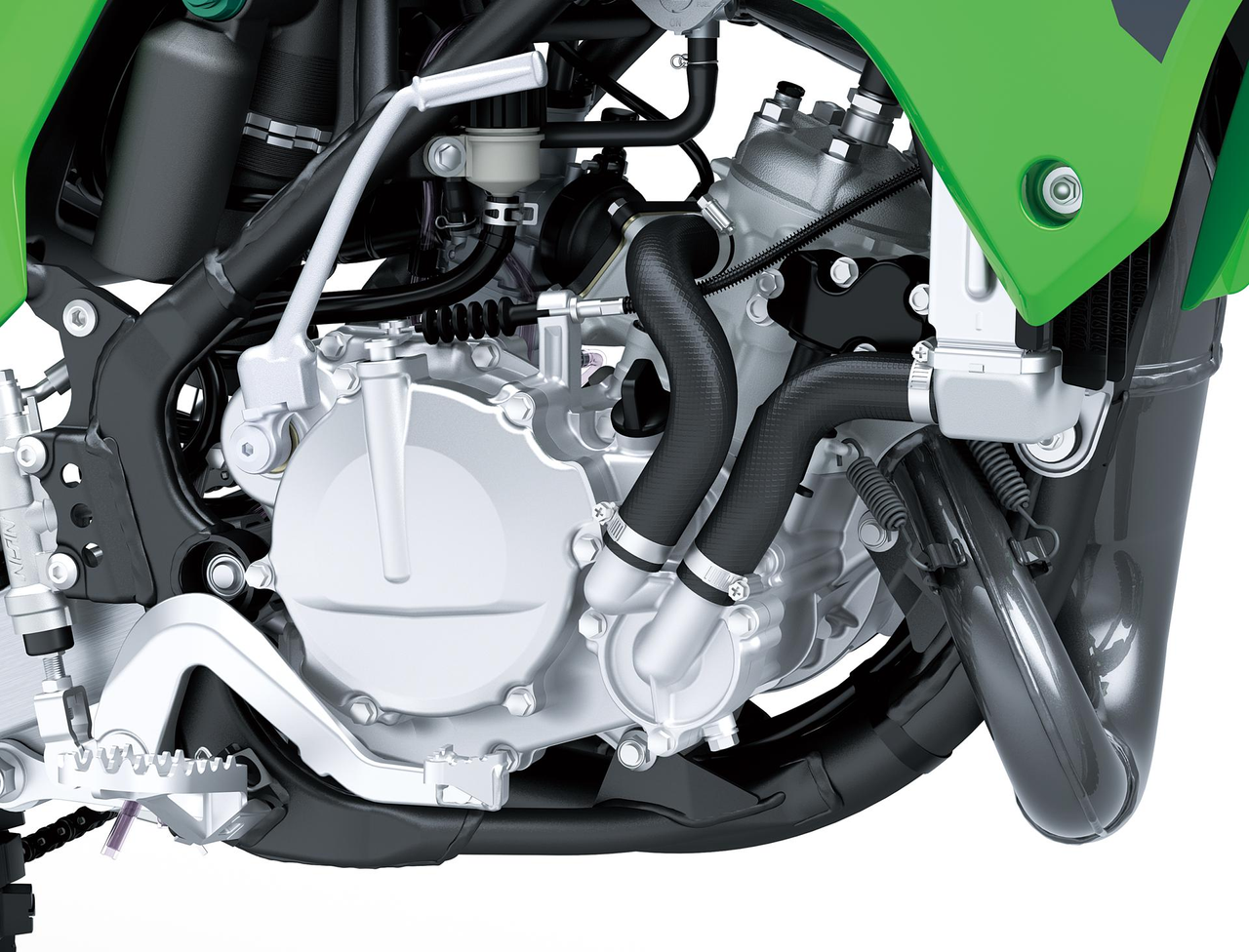

| Engine type | Liquid-cooled, 2-stroke single-cylinder with KIPS |
|---|---|
| Compression ratio | 9.9:1 (low speed) / 8.6:1 (high speed) |
| Valve system | Piston reed valve |
| Bore x stroke | 52.5 x 51.6 mm |
| Displacement | 112 cm³ |
| Fuel system | Carburettor |
| Lubrication | Petrol mix |
| Starting system | Primary kick |
| Ignition system | Digital CDI |
| Transmission | 6-speed, return shift |
|---|---|
| Clutch | Wet, multi disc |
| Primary reduction ratio | 3.400 (68/20) |
| Gear ratios 1st | 2.538 (33/13) |
| Gear ratios 2nd | 1.875 (30/16) |
| Gear ratios 3rd | 1.500 (27/18) |
| Gear ratios 4th | 1.250 (25/20) |
| Gear ratios 5th | 1.090 (24/22) |
| Gear ratios 6th | 0.956 (22/23) |
| Final drive | Chain |
| Final reduction ratio | 3.923 (51/31) |
| Frame type | Perimeter, high-tensile steel |
|---|---|
| Trail | 117 mm |
| Wheel travel front | 275 mm |
| Wheel travel rear | 305 mm |
| Tyre, front | 70/100-19 42M |
| Tyre, rear | 90/100-16 51M |
| L x W x H | 1,935 x 800 x 1,165 mm |
| Steering angle L/R | 39° / 39° |
| Wheel base | 1,310 mm |
| Ground clearance | 330 mm |
| Fuel capacity | 5.0 litres |
| Seat height | 865 mm |
| Curb mass* | 78.4 kg |
| | *Curb mass includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
| Estimated dry weight** | 74.8 kg |
| | **Estimated Dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |

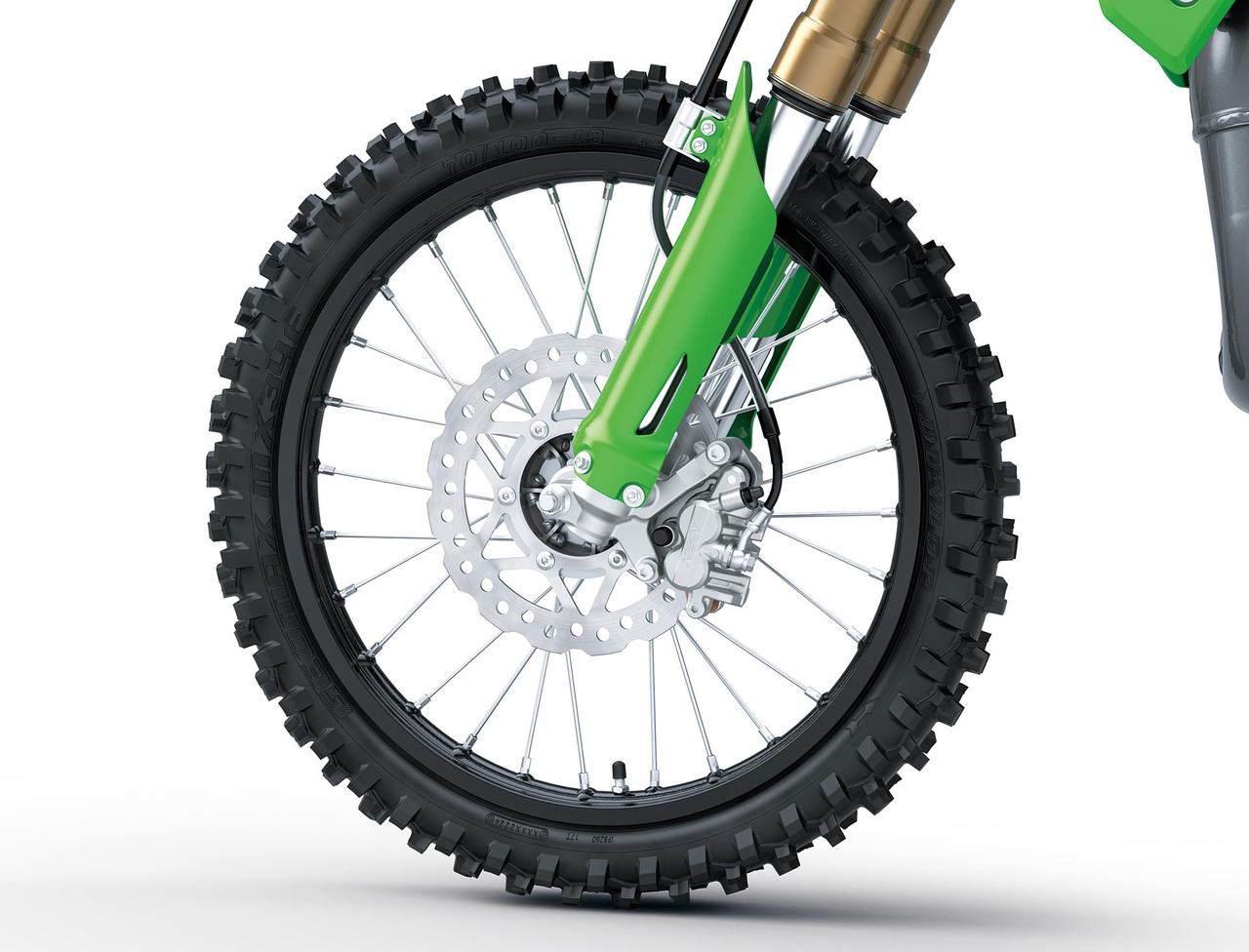

| Front brake type | Single petal disc |
|---|---|
| Front brake diameter | Ø 240 mm |
| Front brake caliper type | Dual-piston |

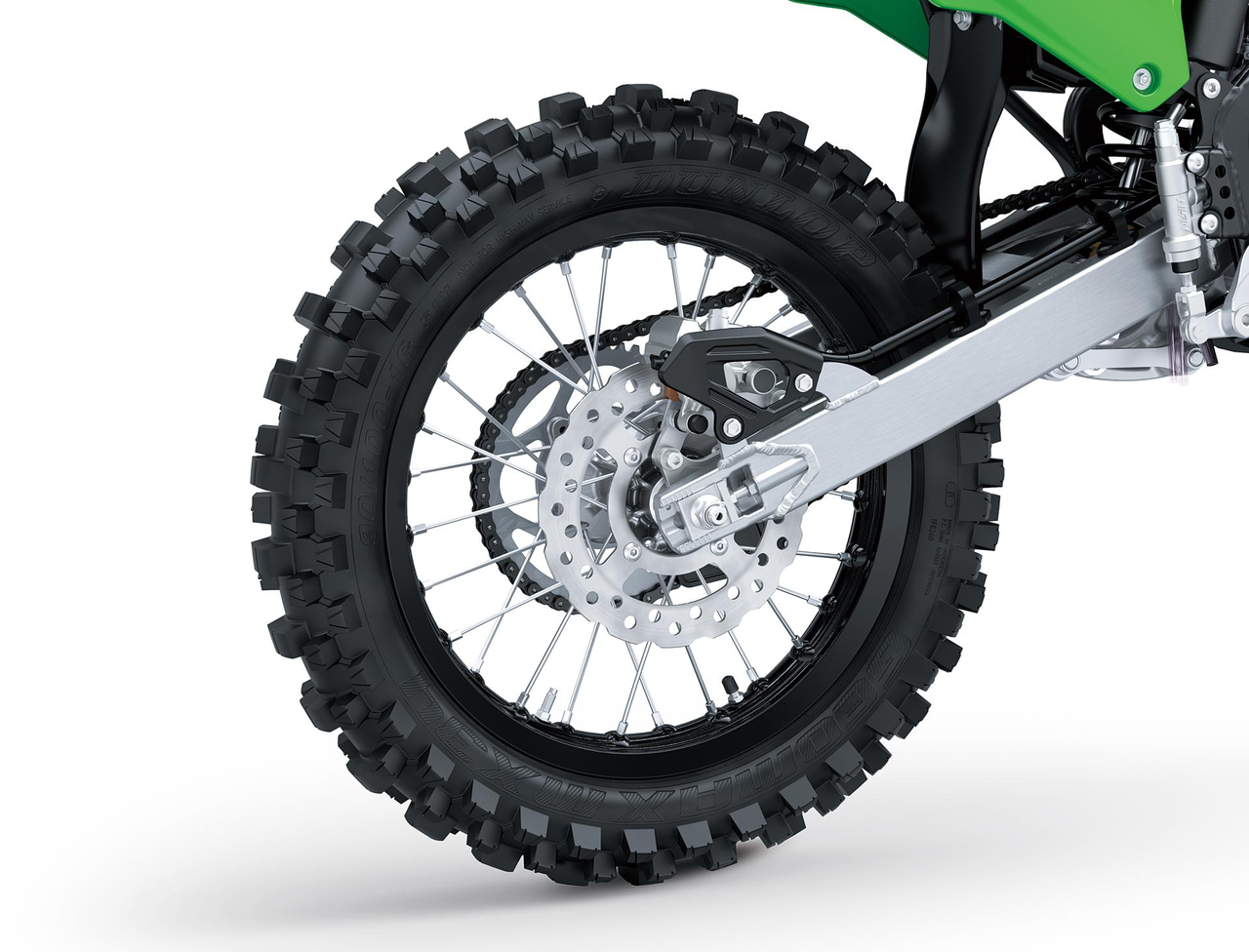

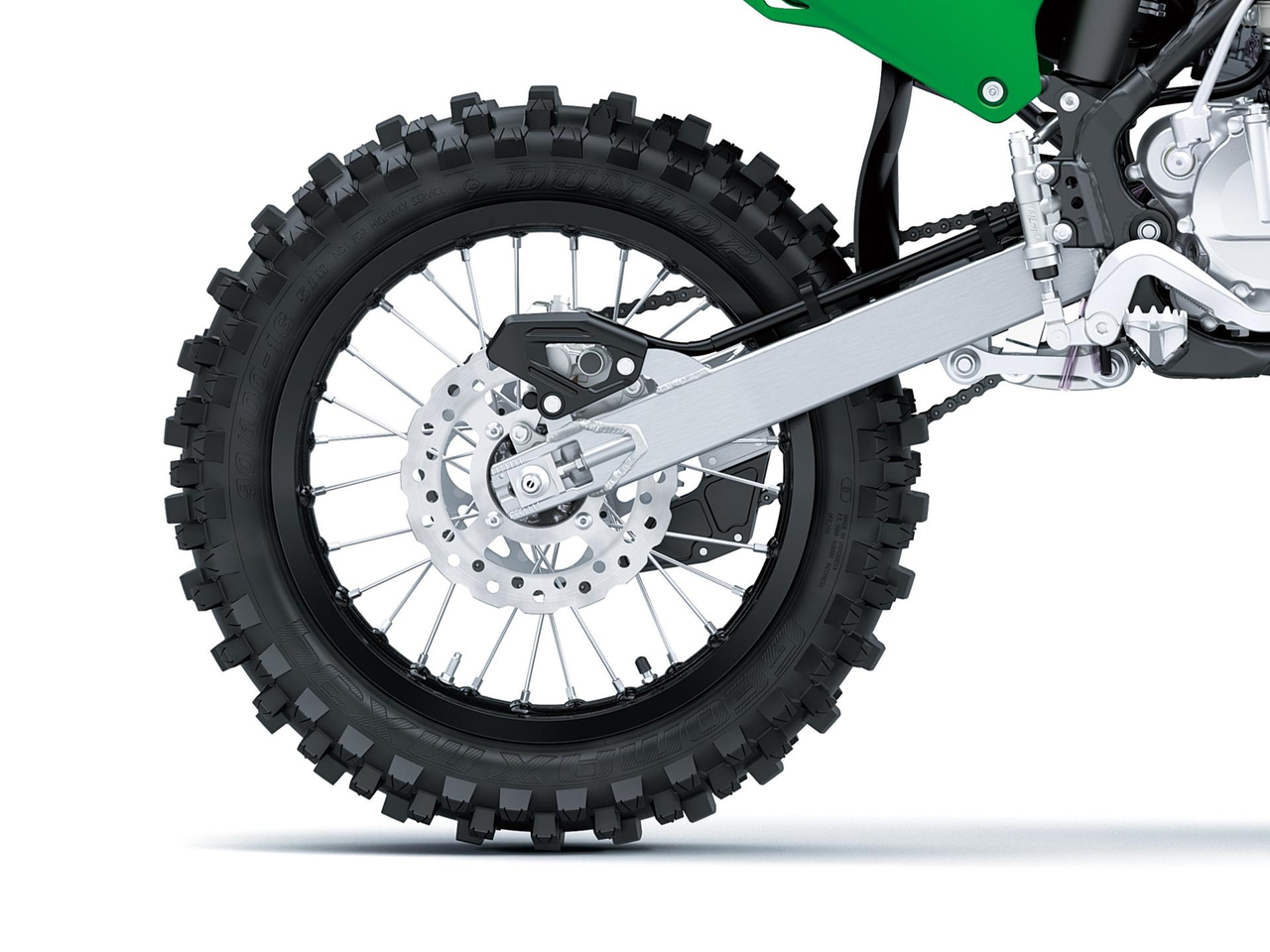

| Rear brake type | Single petal disc |
| Rear brake diameter | Ø 220 mm |
| Rear brake caliper type | Single-piston |
| Front suspension type | Inverted fork with adjustable compression and rebound damping |
| Front suspension diameter | Ø 43 mm |
| Rear suspension type | Uni-Trak, adjustable dual-range (high/low-speed) compression and adjustable rebound damping, and spring preload adjustability |
