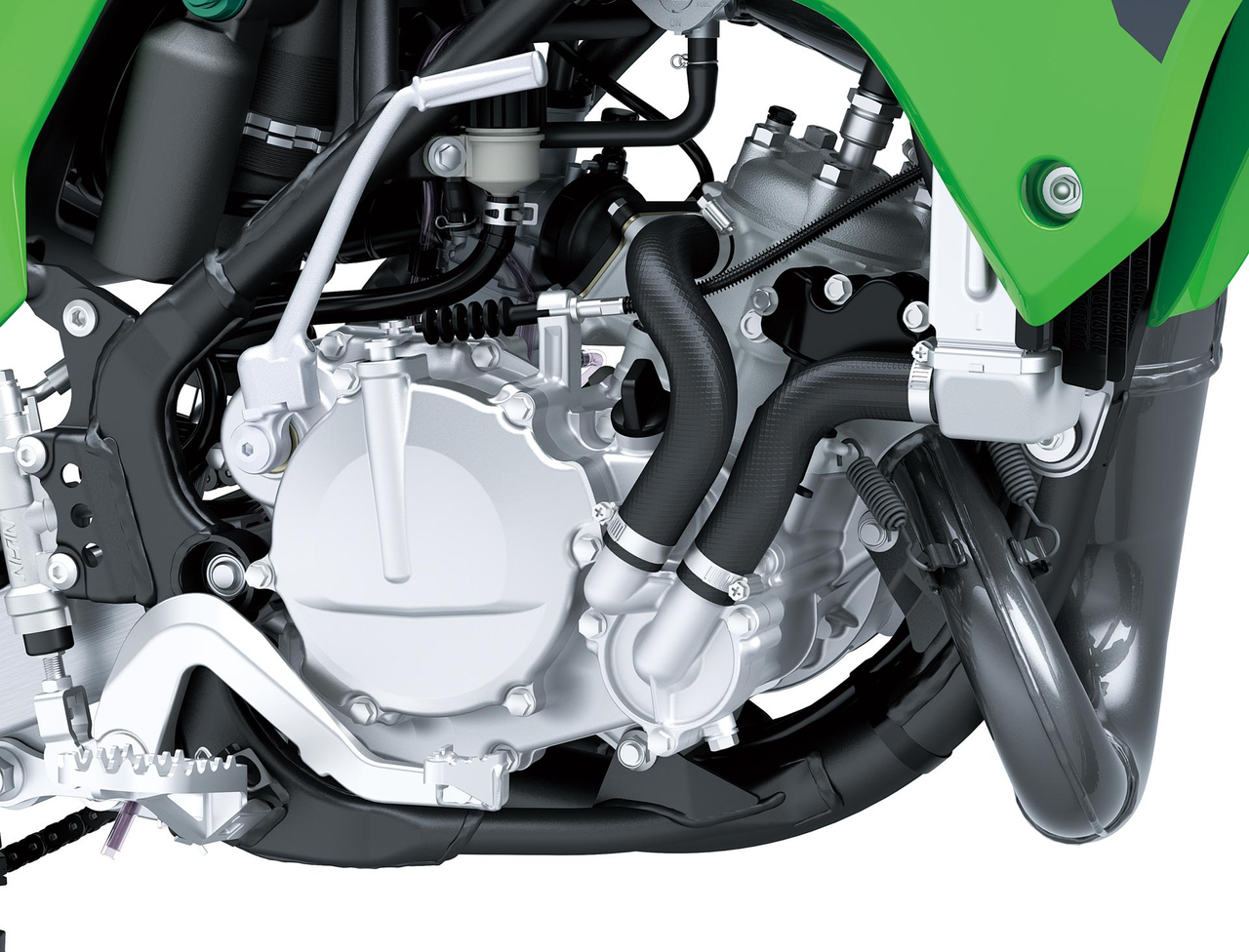

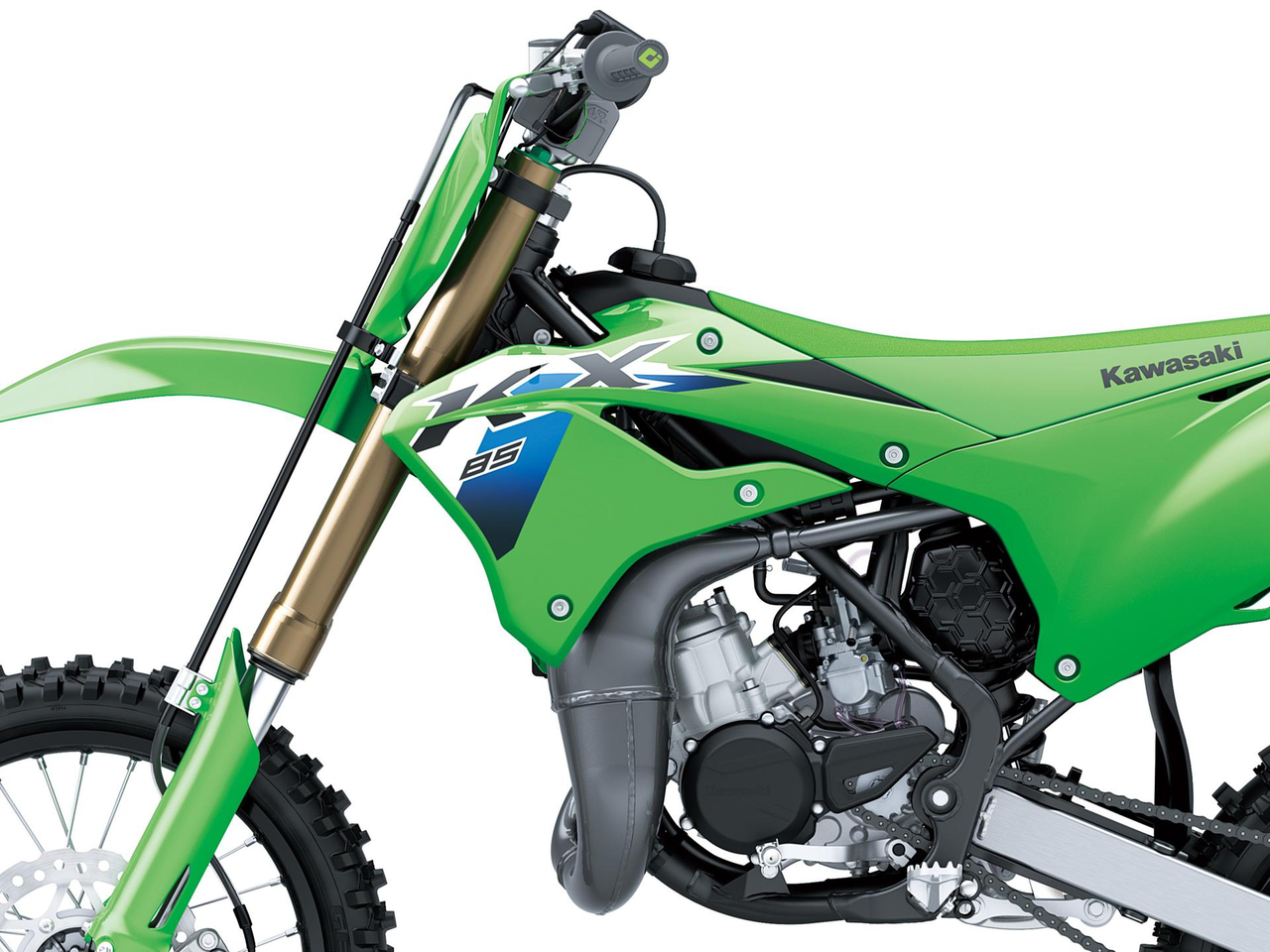

| Engine type | Liquid-cooled, 2-stroke single-cylinder with KIPS |
|---|---|
| Compression ratio | 10.9:1 (low speed); 9.0:1 (high speed) |
| Valve system | Piston reed valve |
| Bore x stroke | 48.5 x 45.8 mm |
| Displacement | 84 cm³ |
| Fuel system | Carburettor |
| Lubrication | Petrol mix |
| Starting system | Primary kick |
| Ignition system | Digital CDI |
| Transmission | 6-speed, return shift |
|---|---|
| Clutch | Wet, multi disc |
| Primary reduction ratio | 3.400 (68/20) |
| Gear ratios 1st | 2.538 (33/13) |
| Gear ratios 2nd | 1.875 (30/16) |
| Gear ratios 3rd | 1.500 (27/18) |
| Gear ratios 4th | 1.250 (25/20) |
| Gear ratios 5th | 1.090 (24/22) |
| Gear ratios 6th | 0.956 (22/23) |
| Final drive | Chain |

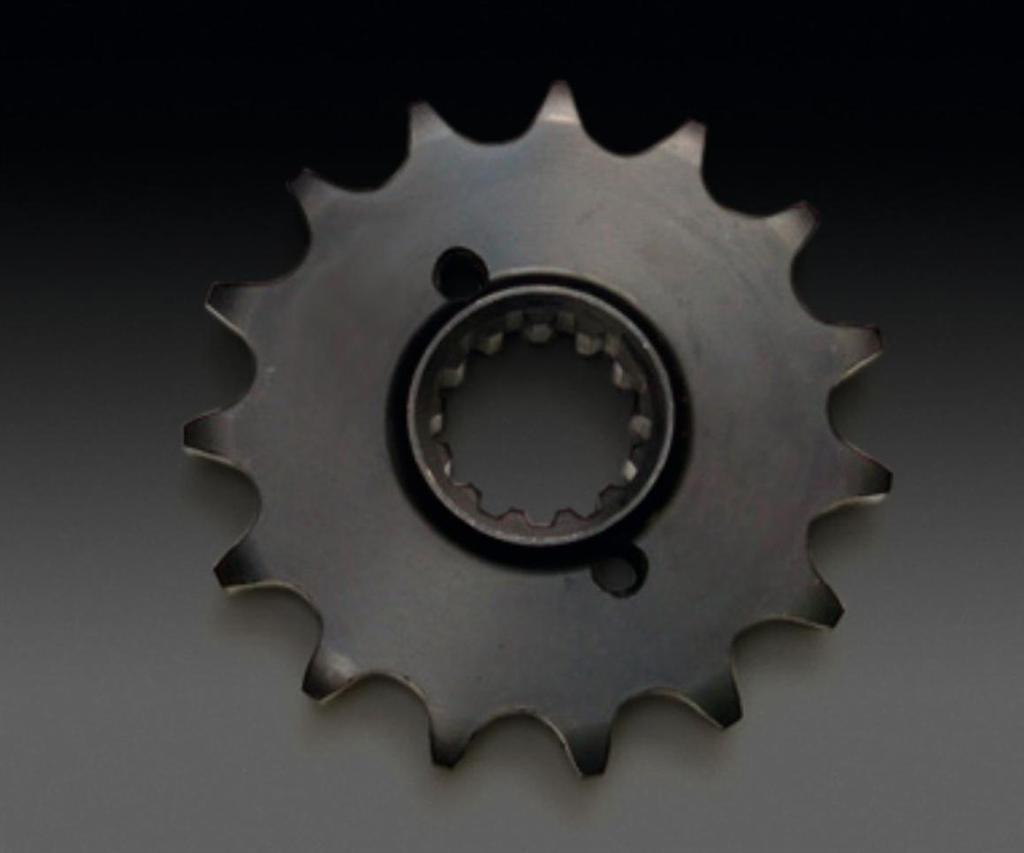

| Final reduction ratio | 3.643 (51/14) |
| Frame type | Perimeter, high-tensile steel |
|---|---|
| Trail | 103 mm |
| Wheel travel front | 275 mm |
| Wheel travel rear | 275 mm |
| Tyre, front | 70/100-17 40M |
| Tyre, rear | 90/100-14 49M |
| L x W x H | 1,835 x 800 x 1,115 mm |
| Steering angle L/R | 39° / 39° |
| Wheel base | 1,265 mm |
| Ground clearance | 295 mm |
| Fuel capacity | 5.0 litres |
| Seat height | 830 mm |
| Curb mass* | 76.4 kg |
| | *Curb mass includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
| Estimated dry weight** | 72.7 kg |
| | **Estimated Dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |

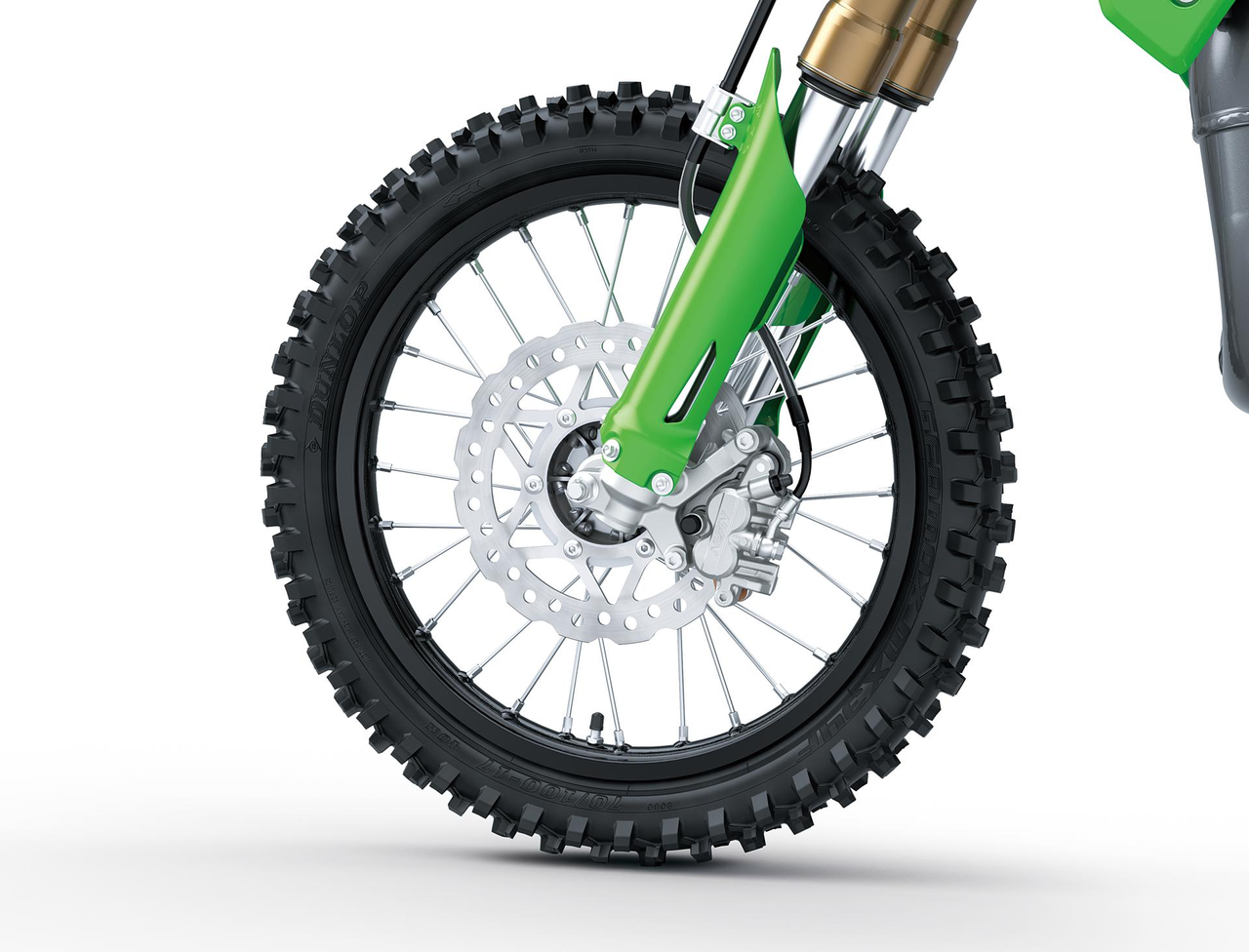

| Front brake type | Single petal disc |
|---|---|
| Front brake diameter | Ø 240 mm |
| Front brake caliper type | Dual-piston |

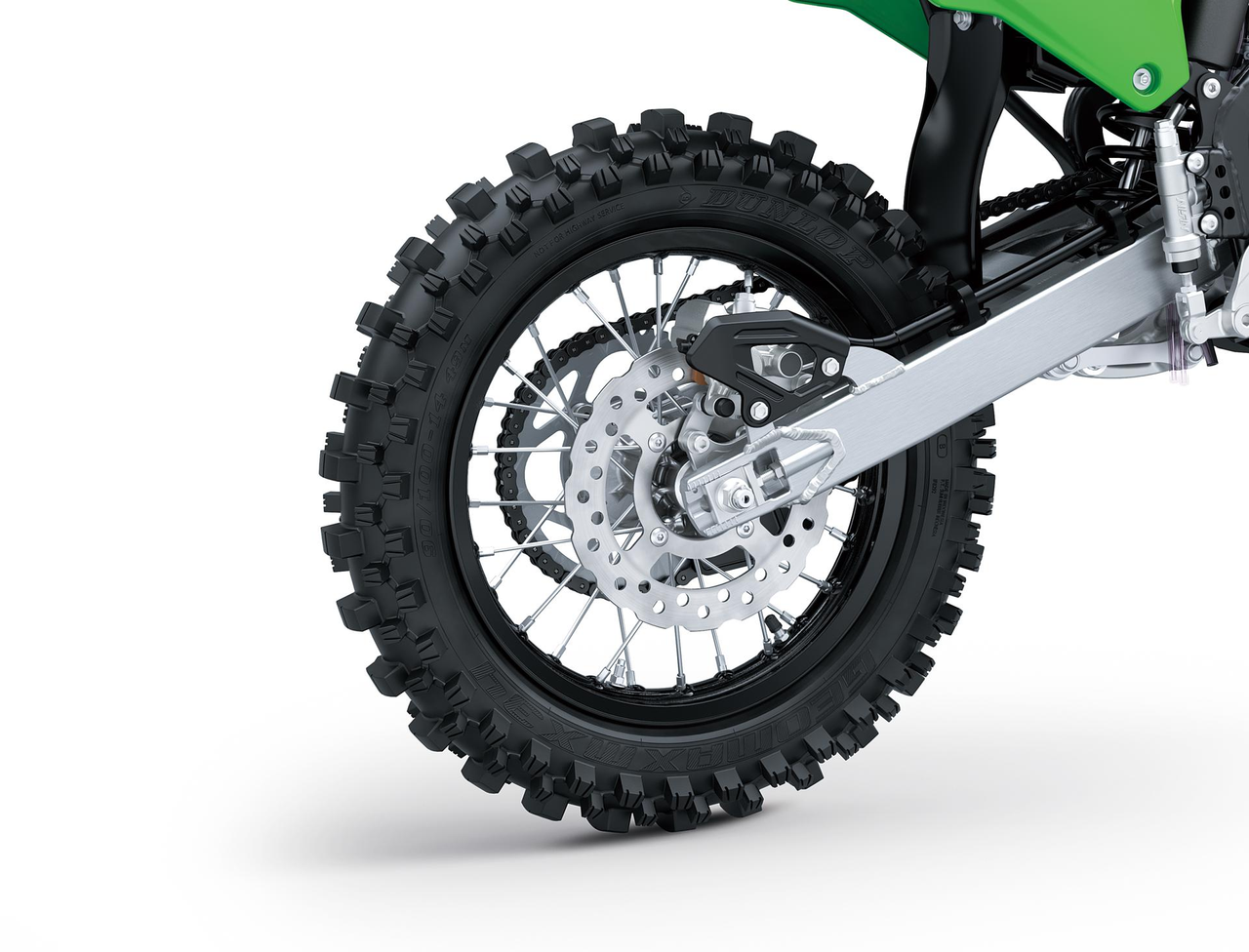

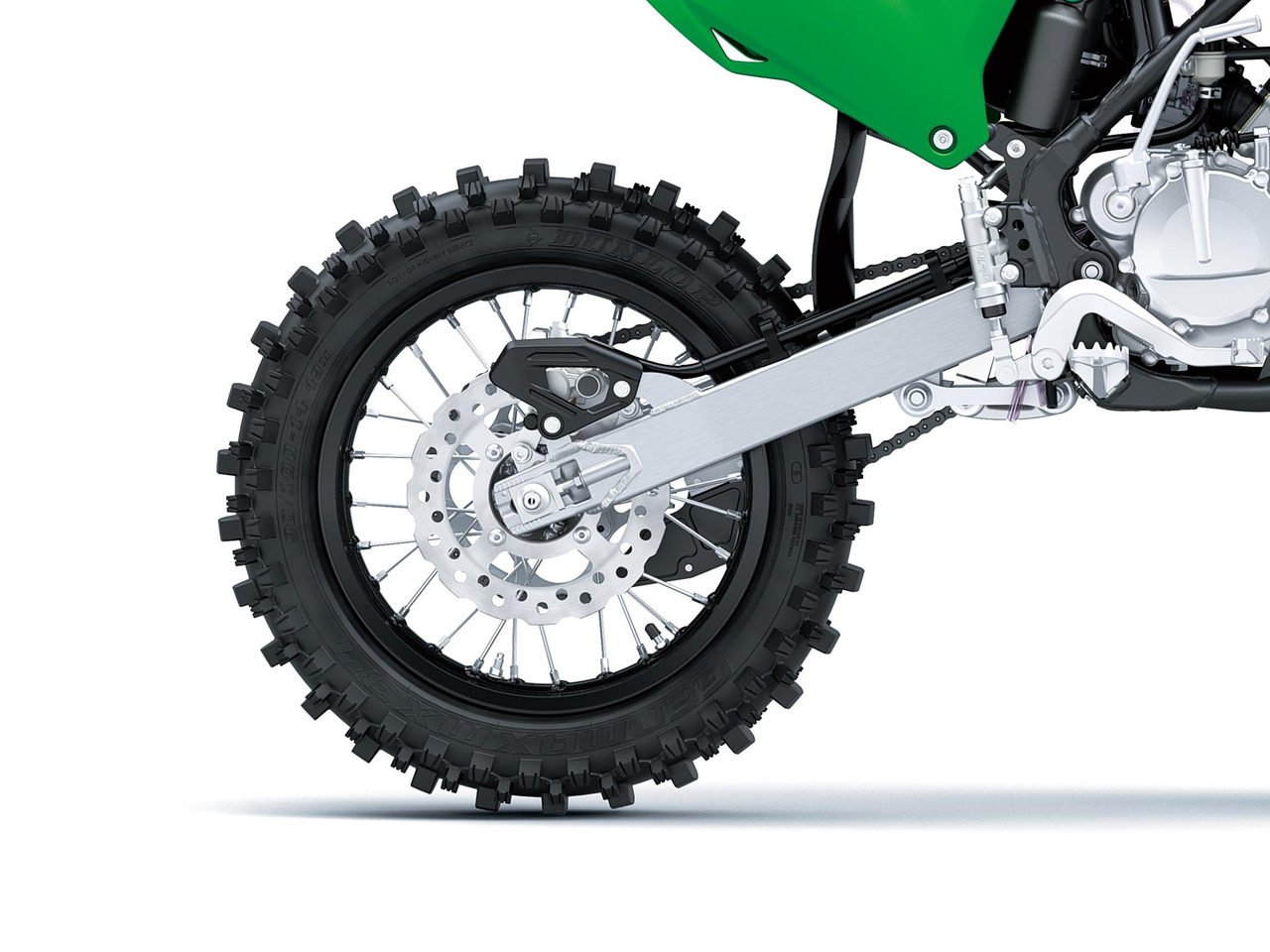

| Rear brake type | Single petal disc |
| Rear brake diameter | Ø 220 mm |
| Rear brake caliper type | Single-piston |

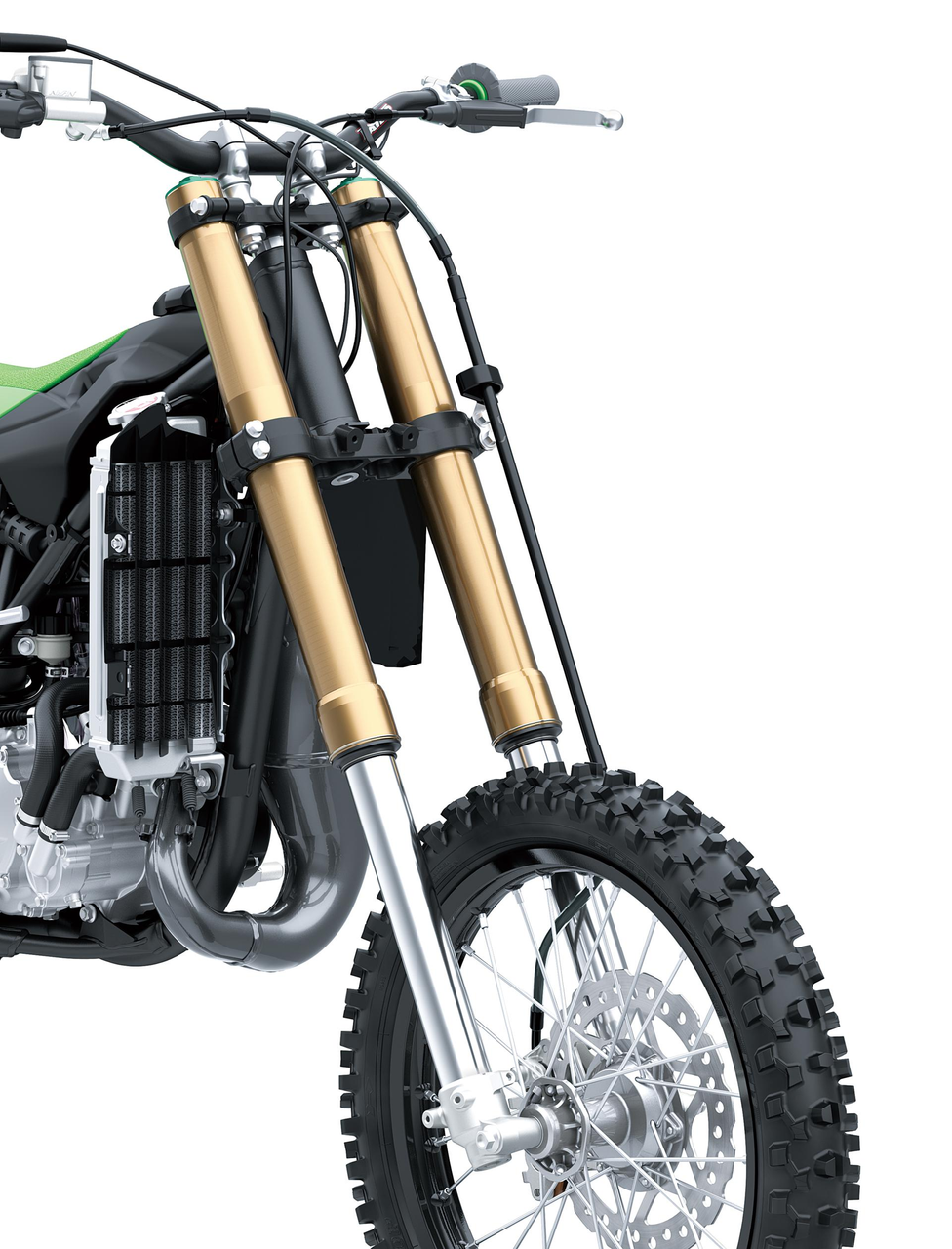

| Front suspension type | Inverted fork with adjustable compression and rebound damping |
| Front suspension diameter | Ø 36 mm |

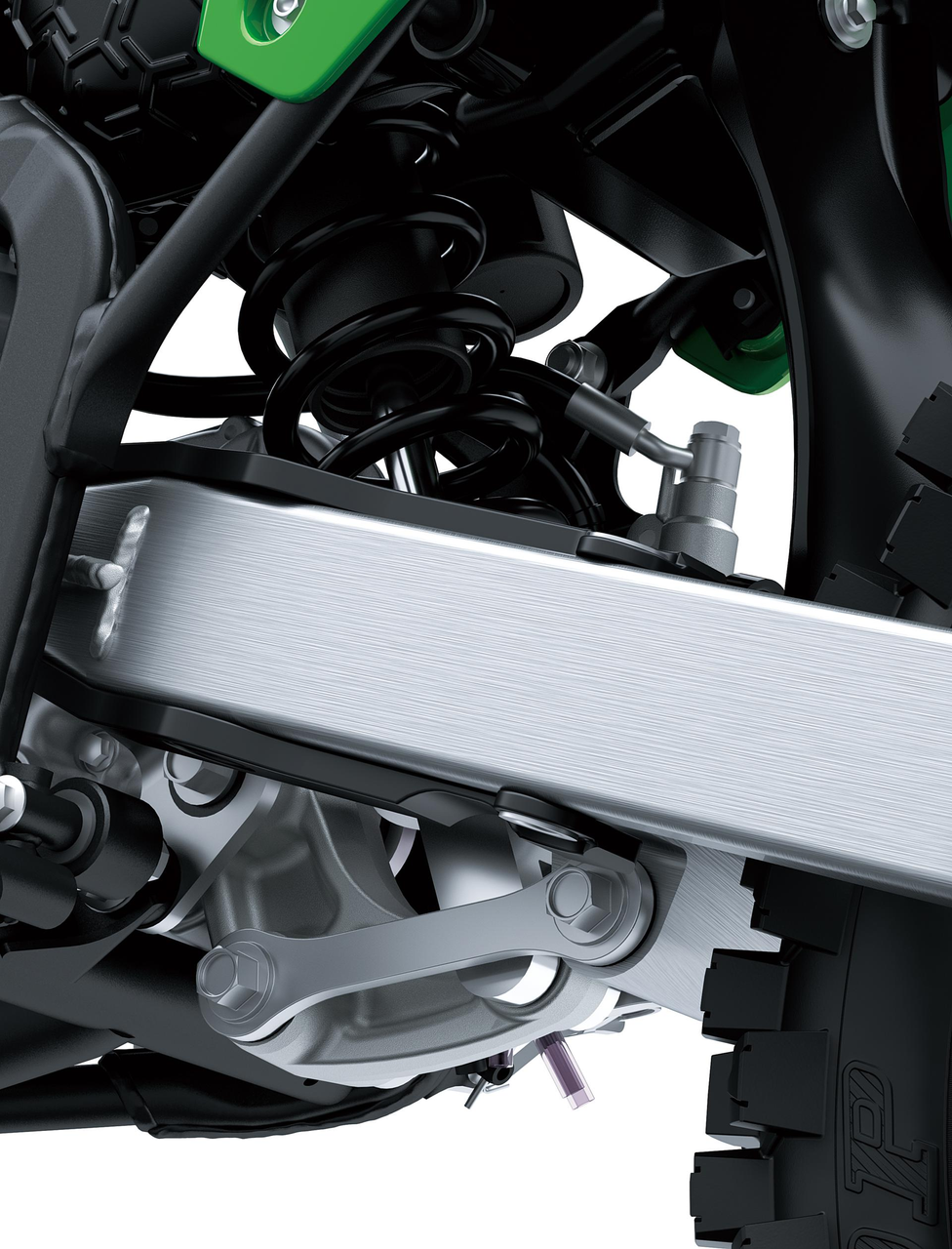

| Rear suspension type | Uni-Trak, adjustable compression and rebound damping, and spring preload adjustability |
