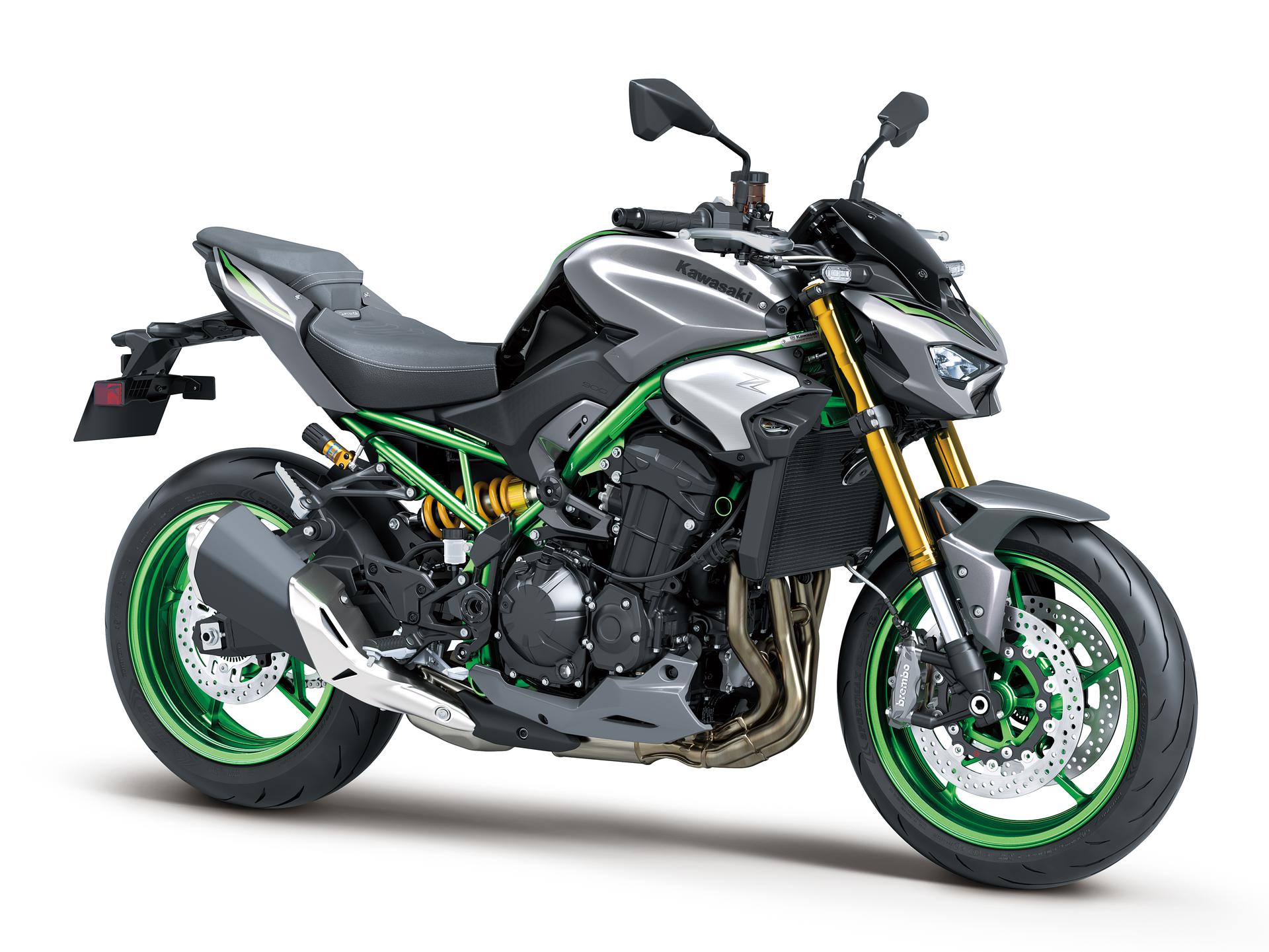

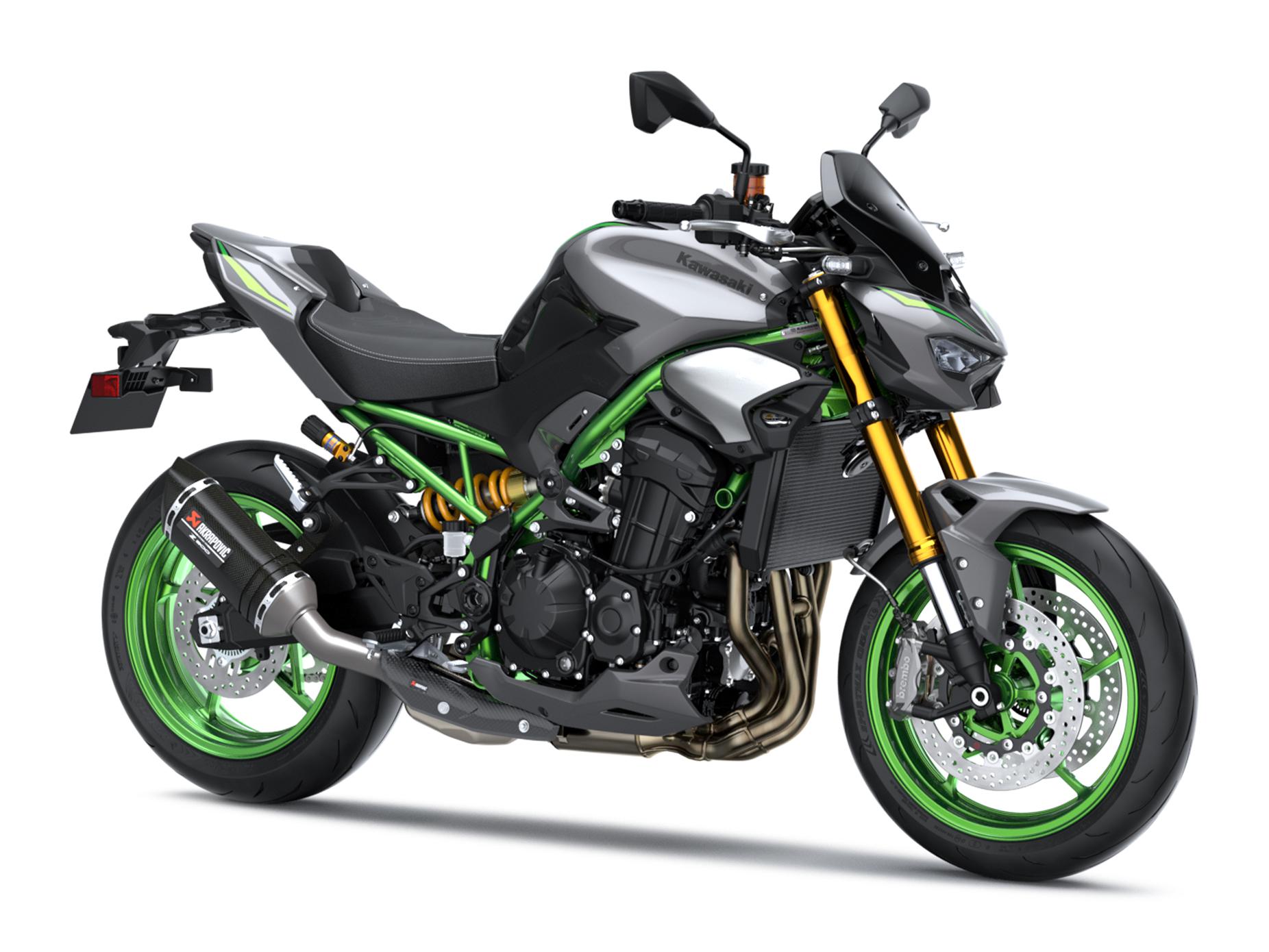

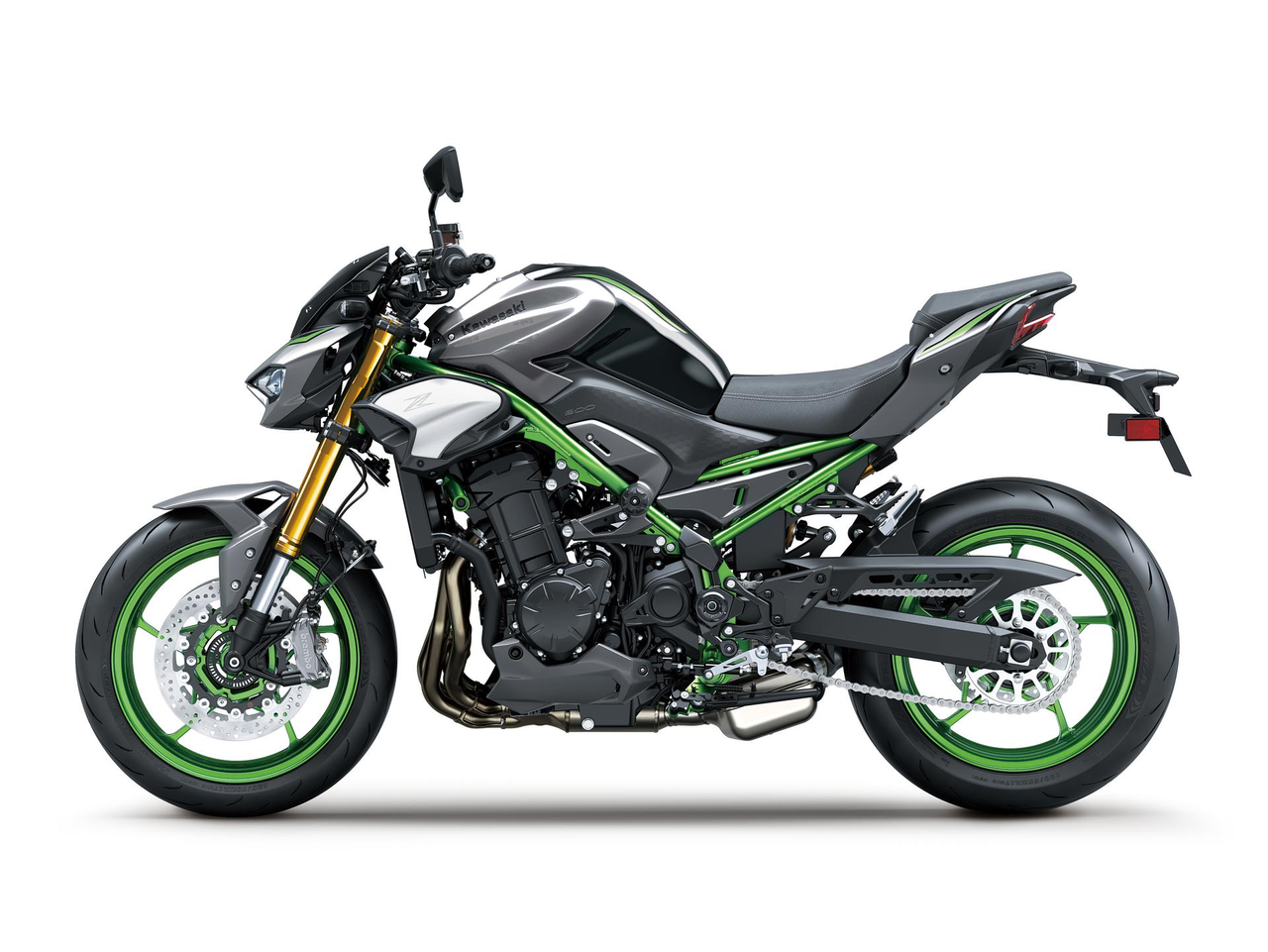

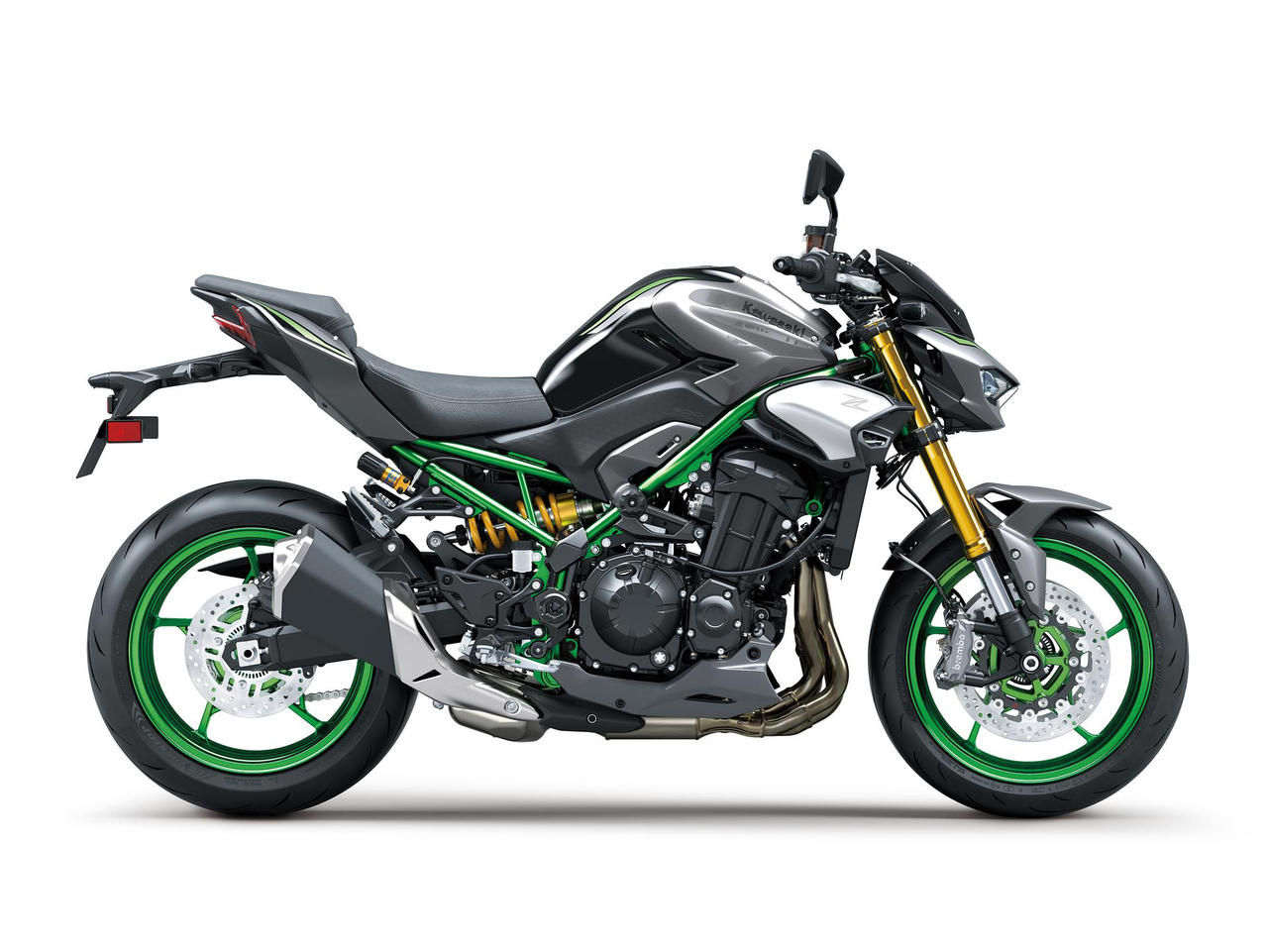

This Z900 SE supernaked ushers in the most evolved iteration of Sugomi, matching radical streetfighter attitude with premium features. Make no mistake, the challenger spirit is stronger than ever—the Z900 SE imposes a powerful aura with refined design and assaults the senses with every roar of the 948cc engine.
Colour
€12,500.00
Inpage Navigation Section: Gallery
Inpage Navigation Section: Features & Specs
Offering excitement that increases as the revs climb, sugomi performance ensures that riding the Z900 is a visceral experience. The crisp response of its In-Line Four engine is perfectly balanced by its light, agile handling. Exhilarating without being overly intimidating, the combination is simply sublime.
Offering excitement that increases as the revs climb, sugomi performance ensures that riding the Z900 is a visceral experience. The crisp response of its In-Line Four engine is perfectly balanced by its light, agile handling. Exhilarating without being overly intimidating, the combination is simply sublime.
The Z900’s sharp and edgy new design, which is centred around the engine, offers unrivalled impact that catches and holds the attention of all who view it. Elegant, close-fitting bodywork is complemented by metal styling accents, contributing a high-quality impression. From the intense look of the more aggressive front end to the futuristic impression of the advanced new taillight design, the Z900’s condensed appearance conveys a light, agile image that reflects its sporty performance.
The Z900’s sharp and edgy new design, which is centred around the engine, offers unrivalled impact that catches and holds the attention of all who view it. Elegant, close-fitting bodywork is complemented by metal styling accents, contributing a high-quality impression. From the intense look of the more aggressive front end to the futuristic impression of the advanced new taillight design, the Z900’s condensed appearance conveys a light, agile image that reflects its sporty performance.
Complementing the Z900’s exciting engine and nimble handling performance, comfort-enhancing features like the highly informative large new display, voice command, and electronic cruise control enhance daily riding pleasure.
Complementing the Z900’s exciting engine and nimble handling performance, comfort-enhancing features like the highly informative large new display, voice command, and electronic cruise control enhance daily riding pleasure.
Brembo brake components and higher-grade suspension components, including an Öhlins rear shock, not only offer improved handling characteristics for even greater control and increased excitement, but also add highlights to the eye-catching styling.
Brembo brake components and higher-grade suspension components, including an Öhlins rear shock, not only offer improved handling characteristics for even greater control and increased excitement, but also add highlights to the eye-catching styling.

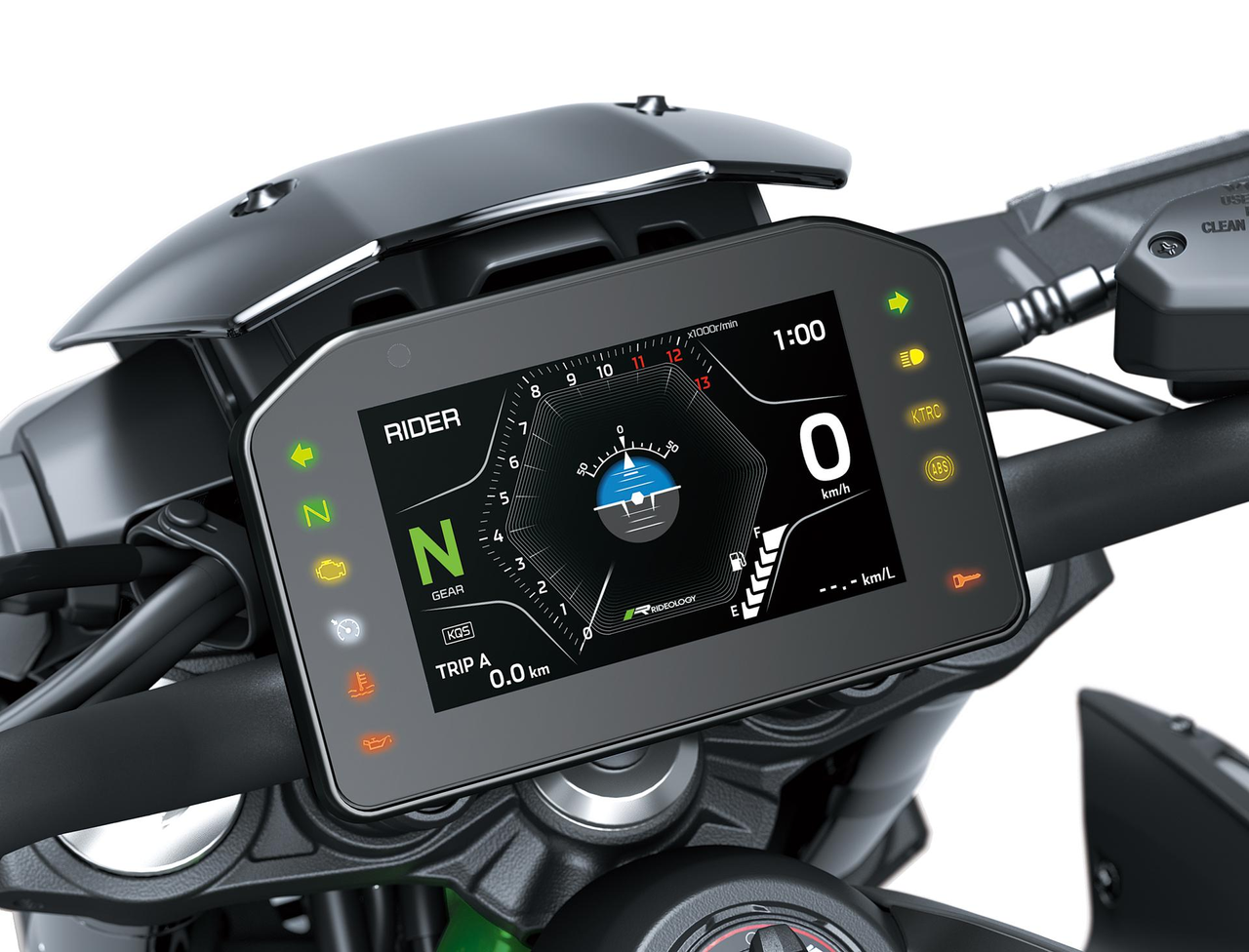

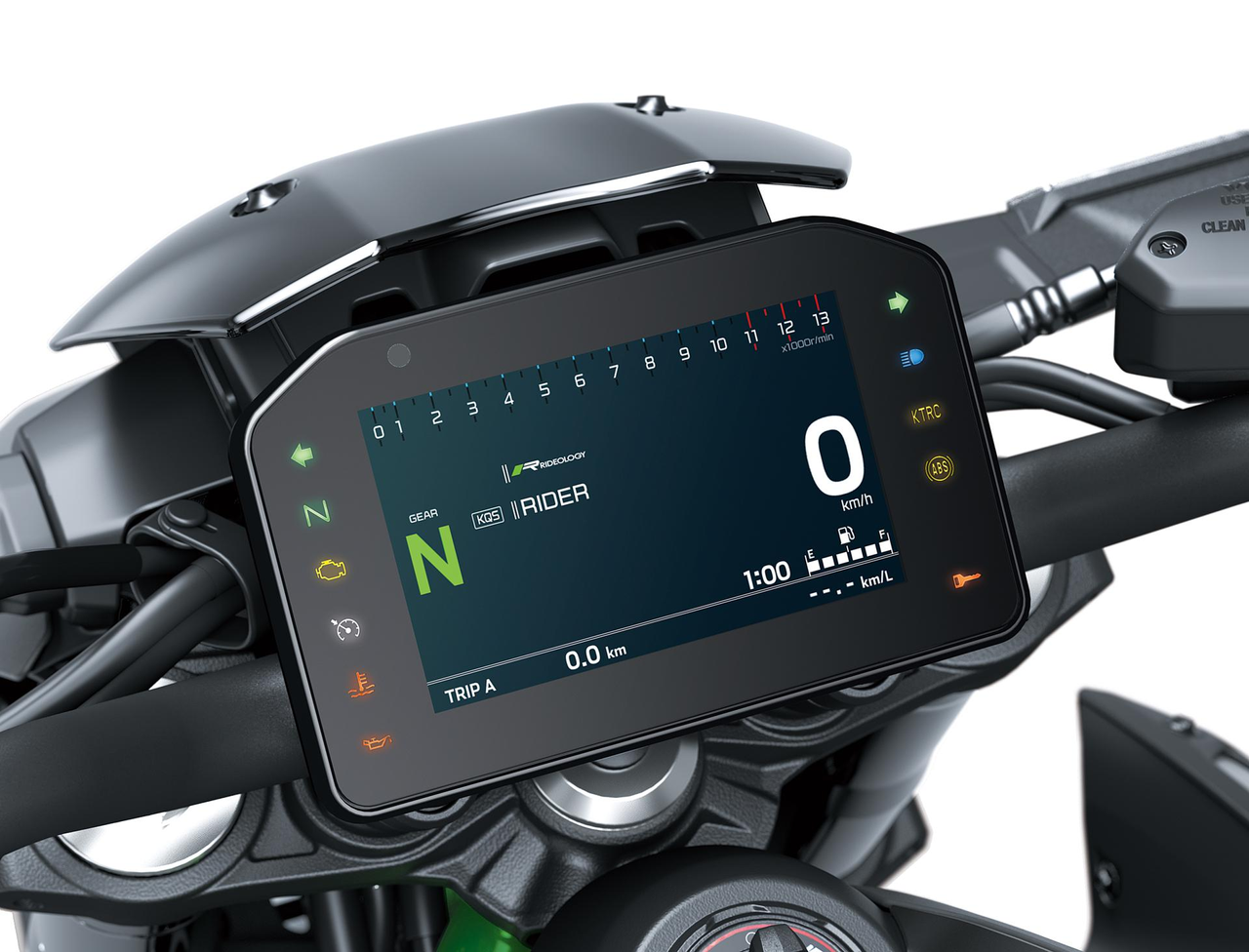

5” all-digital TFT colour instrumentation is larger than the previous model’s display and gives the cockpit a high-tech, high-grade appearance. The glass-bonded display with IPS (in-plane switching) LCD technology offers superb visibility.
5” all-digital TFT colour instrumentation is larger than the previous model’s display and gives the cockpit a high-tech, high-grade appearance. The glass-bonded display with IPS (in-plane switching) LCD technology offers superb visibility.

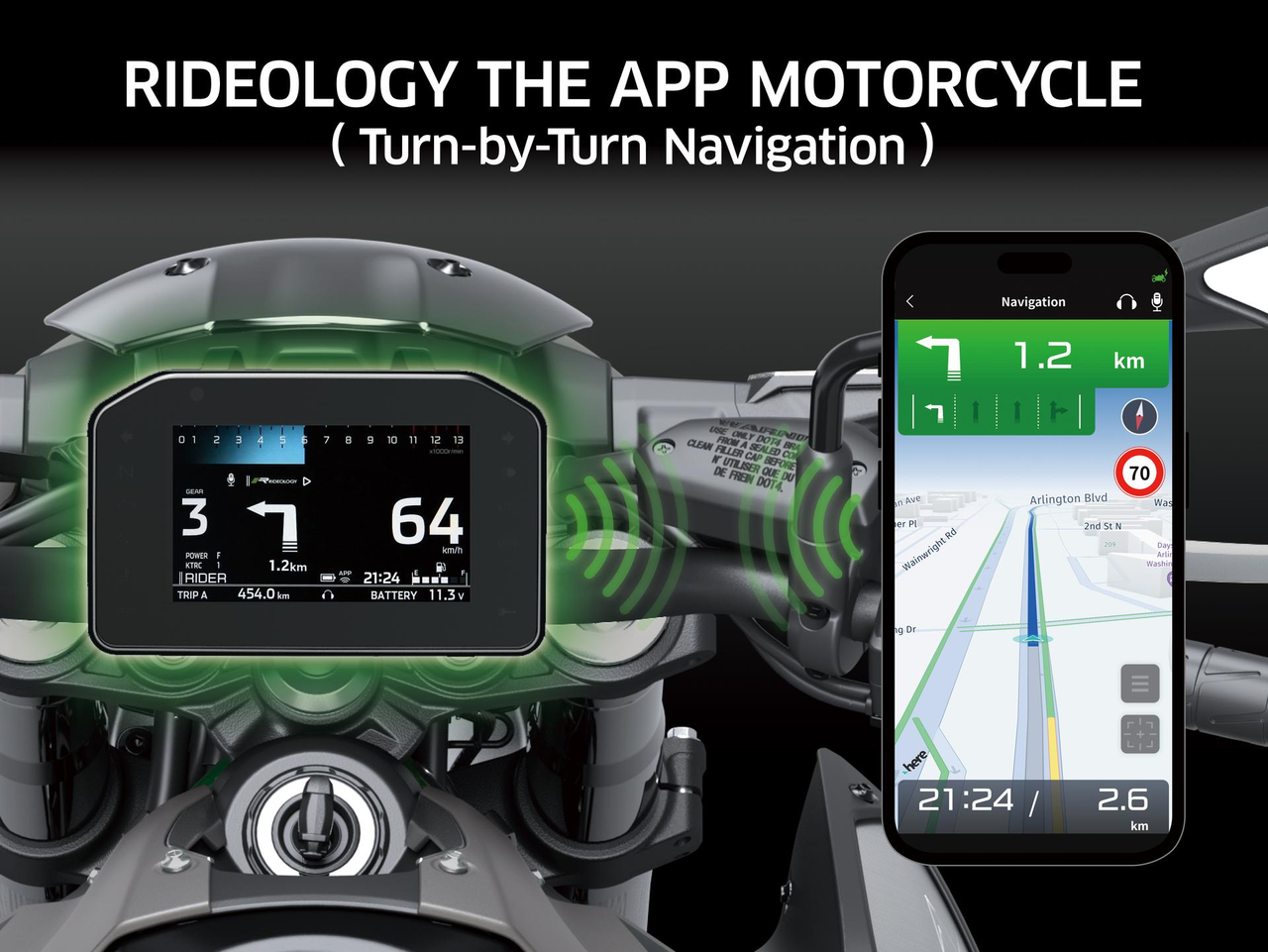

In a Kawasaki first, turn-by-turn navigation can be displayed on the instrument panel, allowing the rider to see where the next turn should be made, while compatibility with RIDEOLOGY THE APP MOTORCYCLE allows the rider to control various functions by voice.
*Voice command and navigation functions will be available only to users who have a license. Feature availability varies by market.
In a Kawasaki first, turn-by-turn navigation can be displayed on the instrument panel, allowing the rider to see where the next turn should be made, while compatibility with RIDEOLOGY THE APP MOTORCYCLE allows the rider to control various functions by voice.
*Voice command and navigation functions will be available only to users who have a license. Feature availability varies by market.
Kawasaki’s highly sophisticated electronic management systems offer rider support to allow riders to more fully experience how the Z900 is fun and rewarding to control. IMU feedback adds greater precision to the ABS.
Kawasaki’s highly sophisticated electronic management systems offer rider support to allow riders to more fully experience how the Z900 is fun and rewarding to control. IMU feedback adds greater precision to the ABS.
Featuring a new tyre compound, Dunlop Sportmax Q5A tyres deliver a strong, planted feel when cornering for enjoyable sport riding.
Featuring a new tyre compound, Dunlop Sportmax Q5A tyres deliver a strong, planted feel when cornering for enjoyable sport riding.

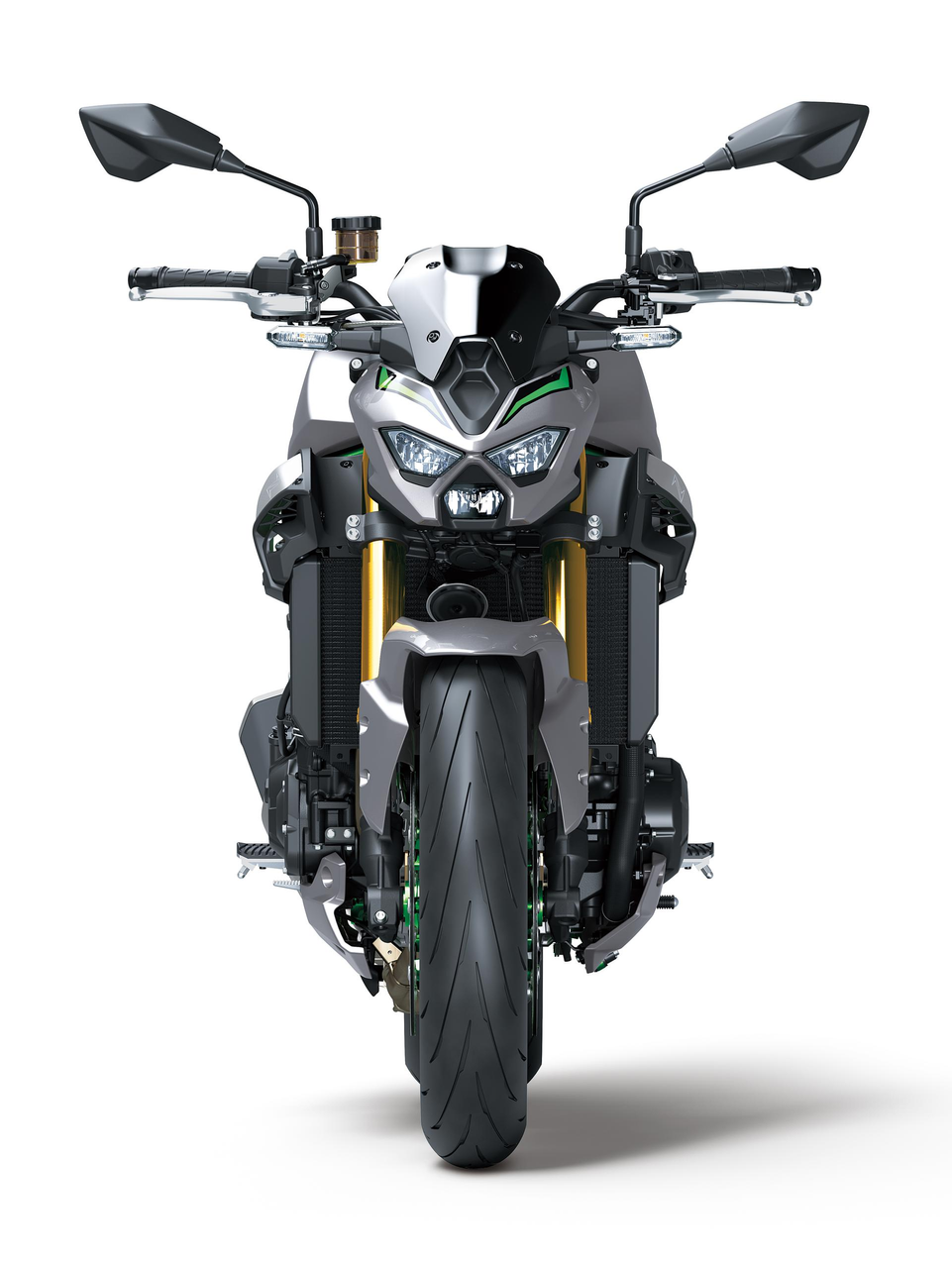

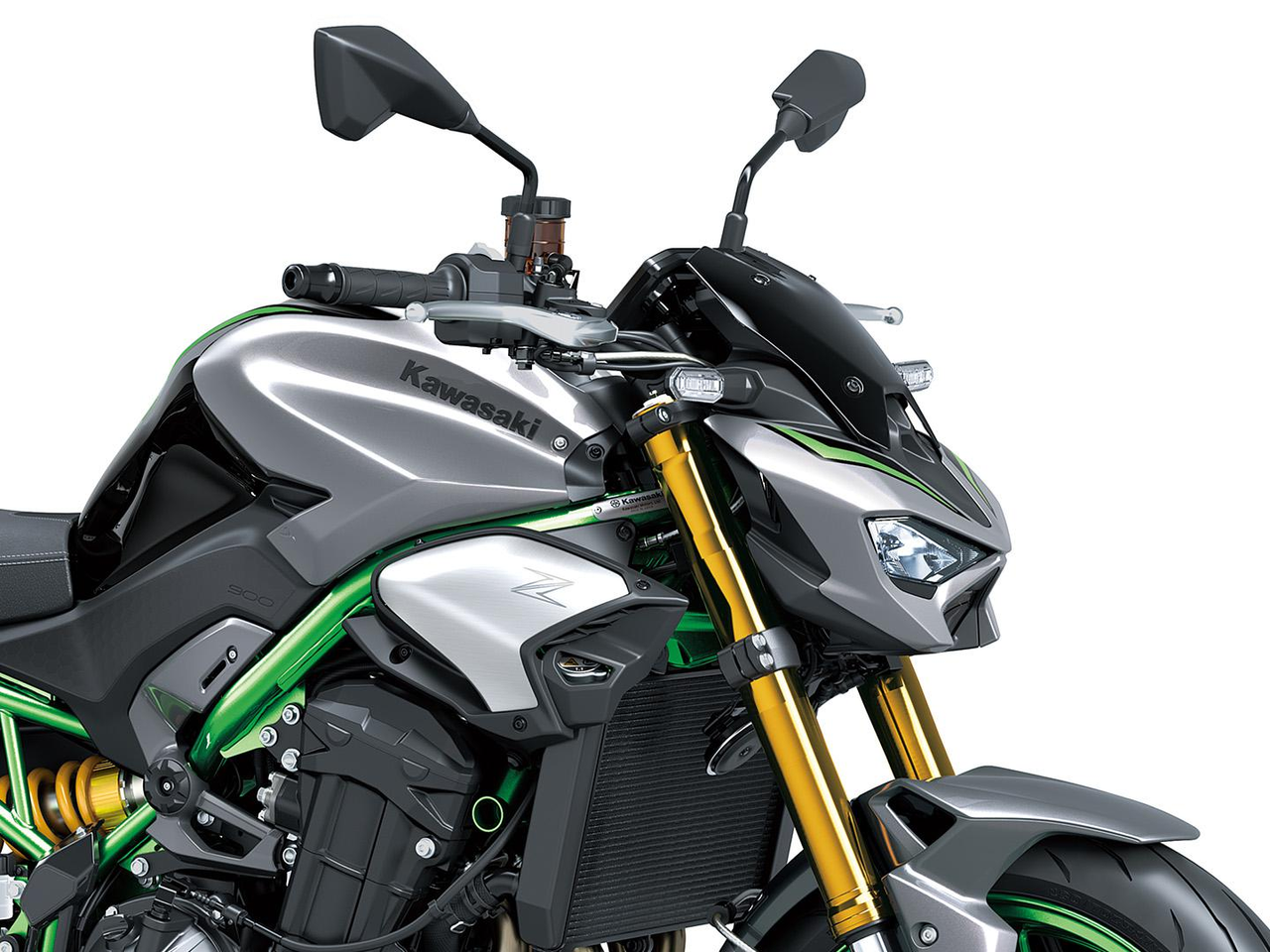

A major part of a sharper-looking new front end is the new sharper, more compact headlights, which were designed to be an integral part of the Z’s sugomi styling. They enable a sleeker front cowl, creating a compact, aggressive looking view from the front, sure to resonate with fans of the Supernaked Z. The headlights are surrounded by black plastic parts that appear like eye shadow if the headlights were eyes, enhancing the looks of the front end.
A major part of a sharper-looking new front end is the new sharper, more compact headlights, which were designed to be an integral part of the Z’s sugomi styling. They enable a sleeker front cowl, creating a compact, aggressive looking view from the front, sure to resonate with fans of the Supernaked Z. The headlights are surrounded by black plastic parts that appear like eye shadow if the headlights were eyes, enhancing the looks of the front end.

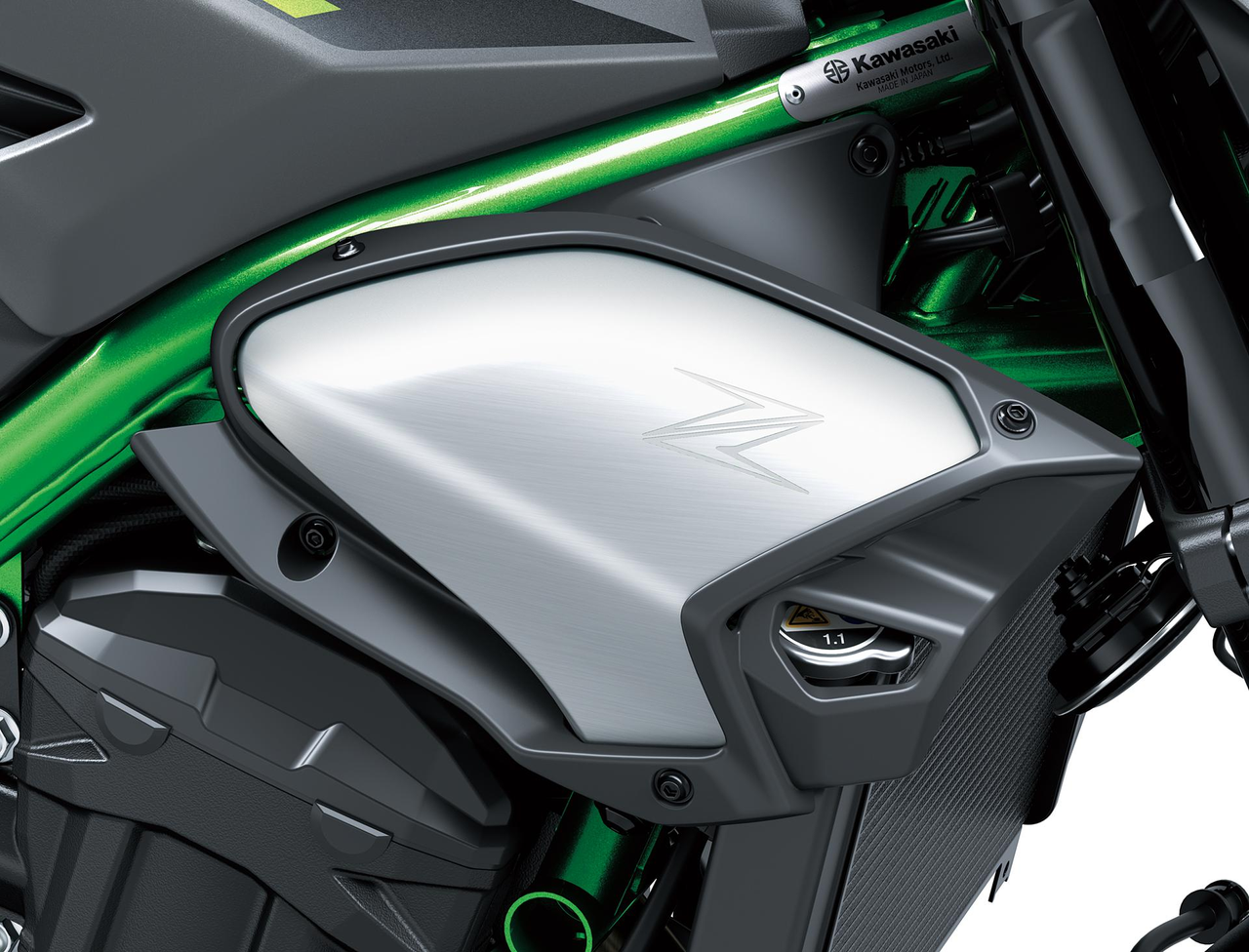

Brushed aluminium side shrouds, plated parts around the key cylinder, and a metal ornament located above the seat featuring the Kawasaki logo are attractive accents that give the Z900 a high-quality, metallic look.
Brushed aluminium side shrouds, plated parts around the key cylinder, and a metal ornament located above the seat featuring the Kawasaki logo are attractive accents that give the Z900 a high-quality, metallic look.
Key to the Z900’s agile handling is a chassis composed of lightweight components, including its trellis frame. Revised suspension settings for the new model allow riders to enjoy sport riding with more confidence.
Key to the Z900’s agile handling is a chassis composed of lightweight components, including its trellis frame. Revised suspension settings for the new model allow riders to enjoy sport riding with more confidence.

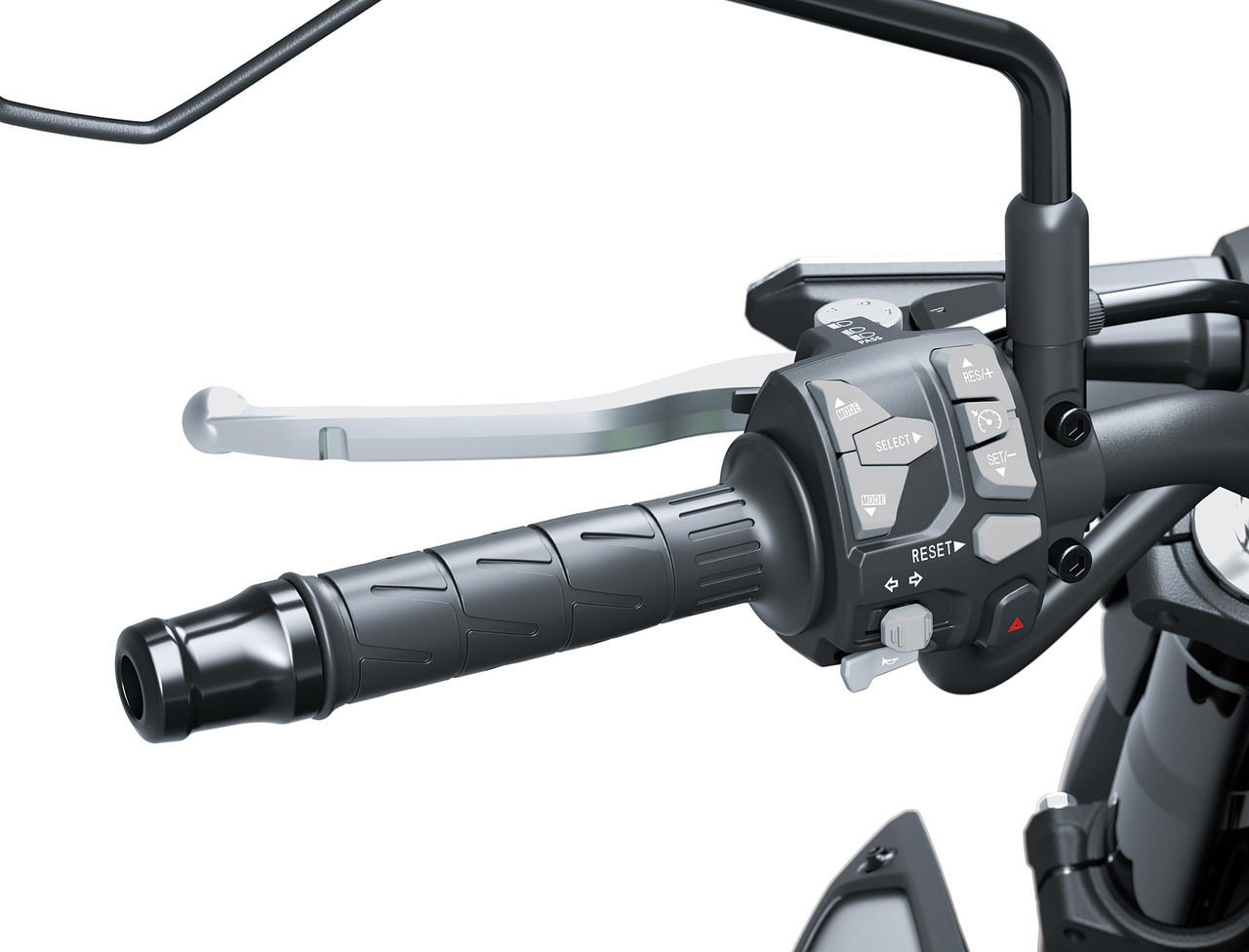

With the push of button, riders are able to easily maintain a set speed, making highway cruising even more comfortable
With the push of button, riders are able to easily maintain a set speed, making highway cruising even more comfortable

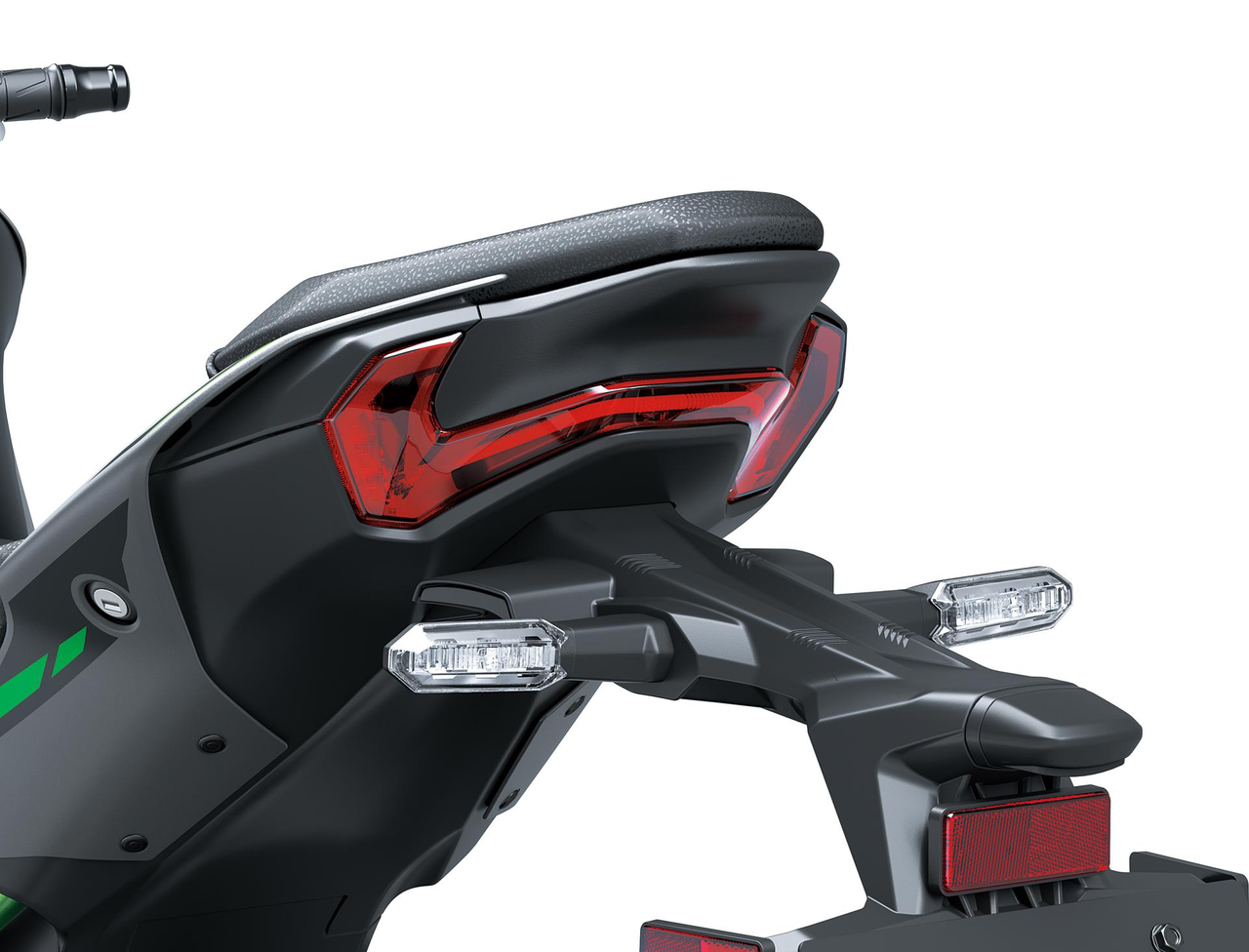

The advanced LED taillight features light-guiding technology to achieve a futuristic design with a cutting-edge, 3D appearance that highlights the Z900’s sharp, edgy styling while contributing to a high-grade look.
The advanced LED taillight features light-guiding technology to achieve a futuristic design with a cutting-edge, 3D appearance that highlights the Z900’s sharp, edgy styling while contributing to a high-grade look.

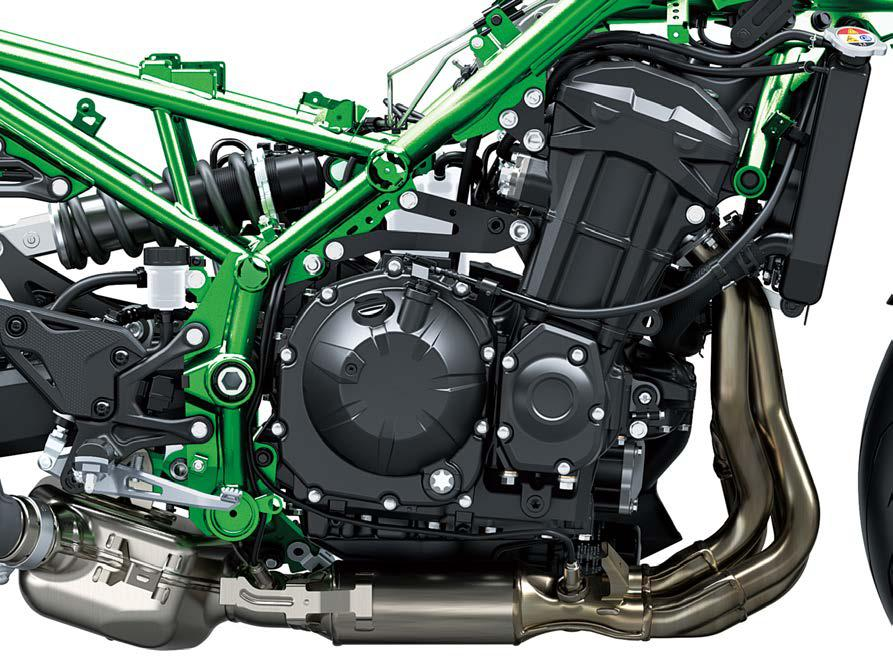

Powerful 948 cm3 liquid-cooled, 4-stroke Inline Four engine has a quick-revving character, and a strong mid-range hit that pulls strongly to the redline. Adding to rider exhilaration, a distinct intake note encourages the rider to twist the throttle. Silky smooth power delivery facilitates control while contributing to rider comfort and confidence. Precise control from the new electronic throttle valves contribute to smooth, linear acceleration, giving riders added confidence and enjoyment when cornering
Powerful 948 cm3 liquid-cooled, 4-stroke Inline Four engine has a quick-revving character, and a strong mid-range hit that pulls strongly to the redline. Adding to rider exhilaration, a distinct intake note encourages the rider to twist the throttle. Silky smooth power delivery facilitates control while contributing to rider comfort and confidence. Precise control from the new electronic throttle valves contribute to smooth, linear acceleration, giving riders added confidence and enjoyment when cornering
Offering excitement that increases as the revs climb, sugomi performance ensures that riding the Z900 is a visceral experience. The crisp response of its In-Line Four engine is perfectly balanced by its light, agile handling. Exhilarating without being overly intimidating, the combination is simply sublime.
Offering excitement that increases as the revs climb, sugomi performance ensures that riding the Z900 is a visceral experience. The crisp response of its In-Line Four engine is perfectly balanced by its light, agile handling. Exhilarating without being overly intimidating, the combination is simply sublime.
The Z900’s sharp and edgy new design, which is centred around the engine, offers unrivalled impact that catches and holds the attention of all who view it. Elegant, close-fitting bodywork is complemented by metal styling accents, contributing a high-quality impression. From the intense look of the more aggressive front end to the futuristic impression of the advanced new taillight design, the Z900’s condensed appearance conveys a light, agile image that reflects its sporty performance.
The Z900’s sharp and edgy new design, which is centred around the engine, offers unrivalled impact that catches and holds the attention of all who view it. Elegant, close-fitting bodywork is complemented by metal styling accents, contributing a high-quality impression. From the intense look of the more aggressive front end to the futuristic impression of the advanced new taillight design, the Z900’s condensed appearance conveys a light, agile image that reflects its sporty performance.
Complementing the Z900’s exciting engine and nimble handling performance, comfort-enhancing features like the highly informative large new display, voice command, and electronic cruise control enhance daily riding pleasure.
Complementing the Z900’s exciting engine and nimble handling performance, comfort-enhancing features like the highly informative large new display, voice command, and electronic cruise control enhance daily riding pleasure.
Brembo brake components and higher-grade suspension components, including an Öhlins rear shock, not only offer improved handling characteristics for even greater control and increased excitement, but also add highlights to the eye-catching styling.
Brembo brake components and higher-grade suspension components, including an Öhlins rear shock, not only offer improved handling characteristics for even greater control and increased excitement, but also add highlights to the eye-catching styling.
5” all-digital TFT colour instrumentation is larger than the previous model’s display and gives the cockpit a high-tech, high-grade appearance. The glass-bonded display with IPS (in-plane switching) LCD technology offers superb visibility.
5” all-digital TFT colour instrumentation is larger than the previous model’s display and gives the cockpit a high-tech, high-grade appearance. The glass-bonded display with IPS (in-plane switching) LCD technology offers superb visibility.
In a Kawasaki first, turn-by-turn navigation can be displayed on the instrument panel, allowing the rider to see where the next turn should be made, while compatibility with RIDEOLOGY THE APP MOTORCYCLE allows the rider to control various functions by voice.
*Voice command and navigation functions will be available only to users who have a license. Feature availability varies by market.
In a Kawasaki first, turn-by-turn navigation can be displayed on the instrument panel, allowing the rider to see where the next turn should be made, while compatibility with RIDEOLOGY THE APP MOTORCYCLE allows the rider to control various functions by voice.
*Voice command and navigation functions will be available only to users who have a license. Feature availability varies by market.
Kawasaki’s highly sophisticated electronic management systems offer rider support to allow riders to more fully experience how the Z900 is fun and rewarding to control. IMU feedback adds greater precision to the ABS.
Kawasaki’s highly sophisticated electronic management systems offer rider support to allow riders to more fully experience how the Z900 is fun and rewarding to control. IMU feedback adds greater precision to the ABS.
Featuring a new tyre compound, Dunlop Sportmax Q5A tyres deliver a strong, planted feel when cornering for enjoyable sport riding.
Featuring a new tyre compound, Dunlop Sportmax Q5A tyres deliver a strong, planted feel when cornering for enjoyable sport riding.
A major part of a sharper-looking new front end is the new sharper, more compact headlights, which were designed to be an integral part of the Z’s sugomi styling. They enable a sleeker front cowl, creating a compact, aggressive looking view from the front, sure to resonate with fans of the Supernaked Z. The headlights are surrounded by black plastic parts that appear like eye shadow if the headlights were eyes, enhancing the looks of the front end.
A major part of a sharper-looking new front end is the new sharper, more compact headlights, which were designed to be an integral part of the Z’s sugomi styling. They enable a sleeker front cowl, creating a compact, aggressive looking view from the front, sure to resonate with fans of the Supernaked Z. The headlights are surrounded by black plastic parts that appear like eye shadow if the headlights were eyes, enhancing the looks of the front end.
Brushed aluminium side shrouds, plated parts around the key cylinder, and a metal ornament located above the seat featuring the Kawasaki logo are attractive accents that give the Z900 a high-quality, metallic look.
Brushed aluminium side shrouds, plated parts around the key cylinder, and a metal ornament located above the seat featuring the Kawasaki logo are attractive accents that give the Z900 a high-quality, metallic look.
Key to the Z900’s agile handling is a chassis composed of lightweight components, including its trellis frame. Revised suspension settings for the new model allow riders to enjoy sport riding with more confidence.
Key to the Z900’s agile handling is a chassis composed of lightweight components, including its trellis frame. Revised suspension settings for the new model allow riders to enjoy sport riding with more confidence.
With the push of button, riders are able to easily maintain a set speed, making highway cruising even more comfortable
With the push of button, riders are able to easily maintain a set speed, making highway cruising even more comfortable
The advanced LED taillight features light-guiding technology to achieve a futuristic design with a cutting-edge, 3D appearance that highlights the Z900’s sharp, edgy styling while contributing to a high-grade look.
The advanced LED taillight features light-guiding technology to achieve a futuristic design with a cutting-edge, 3D appearance that highlights the Z900’s sharp, edgy styling while contributing to a high-grade look.
Powerful 948 cm3 liquid-cooled, 4-stroke Inline Four engine has a quick-revving character, and a strong mid-range hit that pulls strongly to the redline. Adding to rider exhilaration, a distinct intake note encourages the rider to twist the throttle. Silky smooth power delivery facilitates control while contributing to rider comfort and confidence. Precise control from the new electronic throttle valves contribute to smooth, linear acceleration, giving riders added confidence and enjoyment when cornering
Powerful 948 cm3 liquid-cooled, 4-stroke Inline Four engine has a quick-revving character, and a strong mid-range hit that pulls strongly to the redline. Adding to rider exhilaration, a distinct intake note encourages the rider to twist the throttle. Silky smooth power delivery facilitates control while contributing to rider comfort and confidence. Precise control from the new electronic throttle valves contribute to smooth, linear acceleration, giving riders added confidence and enjoyment when cornering
KCMF (Kawasaki Cornering Management Function) monitors engine and chassis parameters throughout the corner.
KCMF monitors engine and chassis parameters throughout the corner from entry, through the apex, to corner exit modulating brake force and engine power to facilitate smooth transition from acceleration to braking and back again, and to assist riders in tracing their intended line through the corner. KCMF oversees the following systems (where available): KTRC (including traction, wheelie and sliding control), KIBS (including pitching control), Kawasaki Engine Brake Control
Combined with Kawasaki’s proprietary dynamic modelling program, input from the IMU (Inertial Measurement Unit) enables even more precise chassis orientation awareness, the key to bringing Kawasaki’s electronics to the next level.
IMU means Enhanced Chassis Orientation Awareness. The strength of Kawasaki's cutting-edge electronics has always been the highly sophisticated programming that, using minimal hardware, gives the ECU an accurate real-time picture of what the chassis is doing. Kawasaki's proprietary dynamic modelling program makes skillful use of the magic formula tyre model as it examines changes in multiple parameters, enabling it to take into account changing road and tyre conditions. The addition of an IMU (Inertial Measurement Unit) enables inertia along 6 DOF (degrees of freedom) to be monitored. Acceleration along longitudinal, transverse and vertical axes, plus roll rate and pitch rate are measured. The yaw rate is calculated by the ECU. This additional feedback contributes to an even clearer real-time picture of chassis orientation, enabling even more precise management for control at the limit. With the addition of the IMU and the latest evolution of Kawasaki's advanced modelling software, Kawasaki's electronic engine and chassis management technology takes the step to the next level changing from setting-type and reaction-type systems to feedback-type systems to deliver even greater levels of riding excitement.
Power Mode selection allows engine power delivery to be changed to suit the riding situation.
Models equipped with multiple Power Modes offer riders an easily selectable choice of engine power delivery to suit riding conditions or preference. In addition to Full Power mode, one (Low) or two (Middle, Low) alternate mode(s) in which maximum power is limited and throttle response is milder are provided.
Smartphone connectivity contributes to an enhanced motorcycling experience by enabling riders to connect to their motorcycle wirelessly.
Clever technology enables riders to connect to their motorcycle wirelessly. Using the smartphone application RIDEOLOGY THE APP a number of instrument functions can be accessed, contributing to an enhanced motorcycling experience. Vehicle information (such as the odometer, fuel gauge, maintenance schedule, etc) can be viewed on the smartphone. Riding logs (varies by model, but may include GPS route, gear position, rpm, and other information) can be viewed on the smartphone. When connected, telephone (call, mail) notices are displayed on the instrument panel. Riders can also make changes to their motorcycle instrument display settings (preferred units, clock and date setting, etc) via the smartphone. And on certain models, it is even possible to check and adjust vehicle settings (such as Rider Mode, electronic rider support features, and payload settings) using the smartphone.
3-Mode KTRC (Kawasaki TRaction Control), Kawasaki's most advanced traction control system, offers a selection of modes to suit a variety of riding situations, from sport riding to touring.
3-mode KTRC combines the traction control technology of both 1-mode KTRC, which provides enhanced stability in slippery situations by preventing wheel slip, and S-KTRC, which helps maintain optimum traction in sport riding situations by predicting the rear wheel slip ratio during acceleration, into a single system. The convenient handle switch allows the type of traction control to be changed instantly by selecting one of the three modes, even while riding. Modes 1 and 2 maintain optimum traction during cornering, like S-KTRC. Designed with sport riding in mind, they enable sharp acceleration out of corners by maximizing forward drive from the rear wheel. Modes 1 and 2 differ in the amount that they intervene. Mode 1, set for dry, good-grip road conditions, maintains the ideal slip ratio to ensure optimum traction. Mode 3 operates like 1-mode KTRC, reducing power to allow grip to be regained when rear wheel spin is detected. It is ideal when riding in slippery conditions or in the wet. Enabling riders to easily change traction control character, 3-mode KTRC is Kawasaki's most advanced engine management system.
Based on racing technology, the Assist & Slipper Clutch acts as both a back-torque limiter and a self-servo mechanism that enables a lighter clutch lever pull.
Based on feedback from racing activities, the Assist & Slipper Clutch uses two types of cams (an assist cam and a slipper cam) to either drive the clutch hub and operating plate together or apart. Under normal operation, the assist cam functions as a self-servo mechanism, pulling the clutch hub and operating plate together to compress the clutch plates. This allows the total clutch spring load to be reduced, resulting in a lighter clutch lever feel when operating the clutch. When excessive engine braking occurs as a result of quick downshifts (or an accidental downshift) the slipper cam comes into play, forcing the clutch hub and operating plate apart. This relieves pressure on the clutch plates to reduce back-torque and helps prevent the rear tyre from hopping and skidding. This race-style function is particularly useful when sport or track riding.
Designed to help riders maximise their acceleration on the circuit by enabling clutchless upshifts with the throttle fully open, KQS detects that the shift lever has been actuated and sends a signal to the ECU to cut ignition so that the next gear can be engaged without having to use the clutch. On models that offer clutchless downshifts, during deceleration the system automatically controls engine speed so that the next lower gear can be selected without operating the clutch.

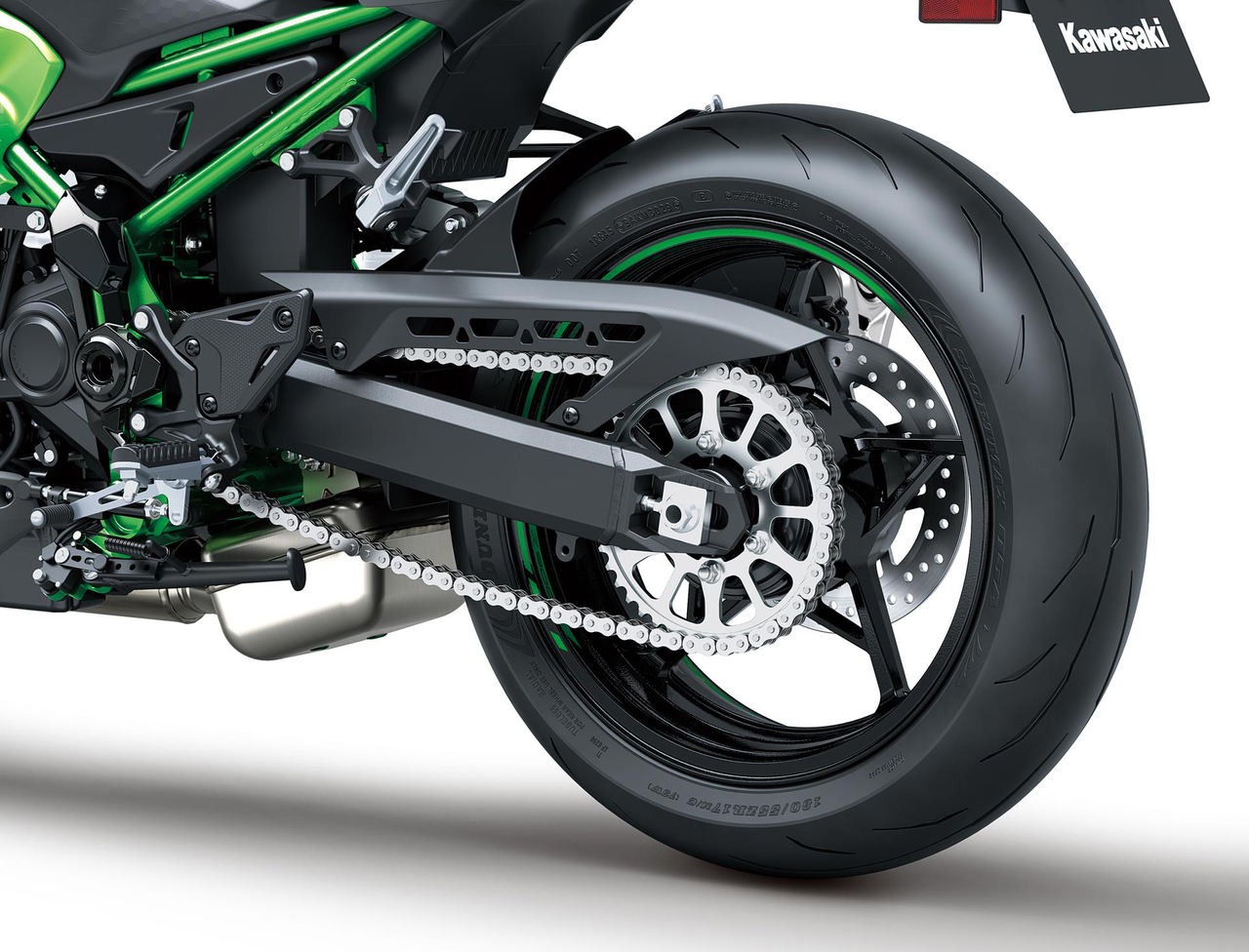

Horizontal Back-link Rear Suspension arranges its shock unit horizontally, greatly contributing to efficient use of space and mass centralisation.
Compared to Kawasaki's traditional Uni-Trak rear suspension, which mounts the shock unit vertically, with Horizontal Back-link rear suspension, the shock unit is almost horizontal. Kawasaki's original suspension arrangement locates the shock unit very close to the bike's centre of gravity, greatly contributing to mass centralisation. And because there is no linkage or shock unit protruding beneath the swingarm, this frees up space for a larger exhaust pre-chamber (an exhaust expansion chamber situated just upstream of the silencer). With a larger pre-chamber, silencer volume can be reduced, and heavy exhaust components can be concentrated closer to the centre of the bike, further contributing to mass centralisation. The result is greatly improved handling. Another benefit is that the shock unit is placed far away from exhaust heat. Because it is more difficult for heat from the exhaust system to adversely affect suspension oil and gas pressure, suspension performance is more stable. Horizontal Back-link rear suspension offers numerous secondary benefits like this.
Sound tuning enhances the exhilaration a Kawasaki motorcycle offers by complementing the sensations the rider feels with a carefully crafted auditory component.
Kawasaki has long had a reputation for building great-sounding bikes – a characteristic inherent in Kawasaki’s engine architecture – but it is only recently that effort has been put into crafting a specific auditory experience though careful sound tuning of either the intake or exhaust system.
Designed specifically to allow riders to enjoy their motorcycles aurally as well as physically, the carefully crafted auditory notes can be the key components of the street riding exhilaration offered by models that have benefitted from sound tuning. Sound tuning can include conducting sound research, designing intake and exhaust system components based on acoustic test carried out in a sound room, and careful consideration of every detail of a system’s components to ensure a balance of performance and the desired sound.
Electronic Throttle Valves allow the ECU to deliver the ideal amount of fuel and air to the engine.
Kawasaki's fully electronic throttle actuation system enables the ECU to control the volume of both the fuel (via fuel injectors) and the air (via throttle valves) delivered to the engine. Ideal fuel injection and throttle valve position results in smooth, natural engine response and the ideal engine output. The system also makes a significant contribution to reduced emissions. Electronic throttle valves also enable more precise control of electronic engine management systems like S-KTRC and KTRC, and allow the implementation of electronic systems like KLCM, Kawasaki Engine Brake Control, and Electronic Cruise Control.
Electronic Cruise Control allows vehicle speed to be fixed. Rider support technology that helps reduce rider fatigue on long trips and contributes to increased touring comfort.
Electronic Cruise Control allows a desired speed (engine rpm) to be maintained with the simple press of a button. Once activated, the rider does not have to constantly apply the throttle. This reduces stress on the right hand when travelling long distances, enabling relaxed cruising and contributing to a high level of riding comfort.

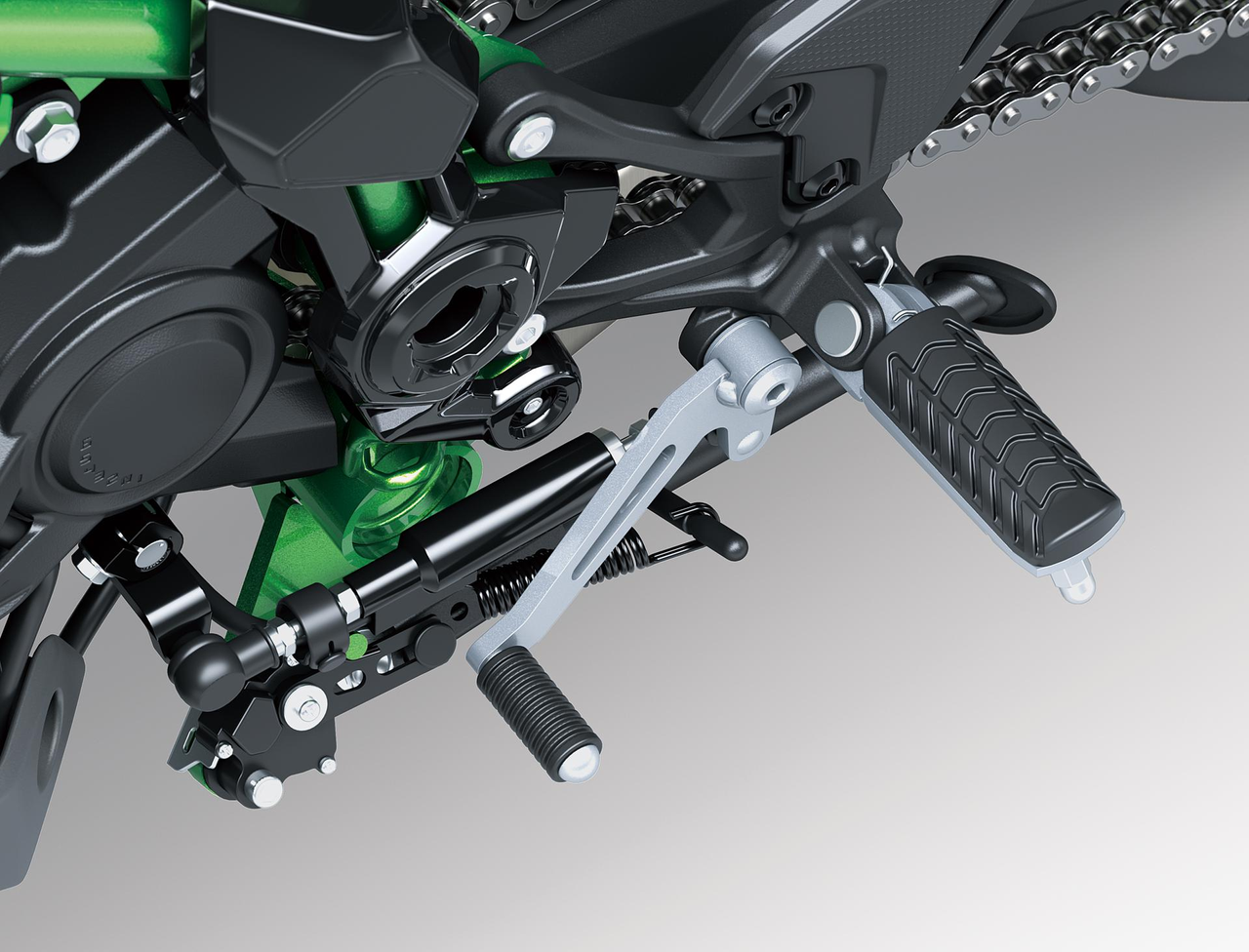

ERGO-FIT is an interface system that allows a wide range of riders to feel at one with their machine.
Proper fit is key for rider comfort and control. However, the ideal fit varies from rider to rider, depending on their physical dimensions and riding style. ERGO-FIT is an interface system designed to allow riders to find their ideal riding position. Various points of the chassis interface (the handlebar, footpegs and seat, etc) can be adjusted through a combination of interchangeable parts and parts with adjustable positions. This enables a wide range of riders to find a riding position that offers both comfort and control. Feeling at one with their machine, they will be able to experience how Kawasaki machines are fun and rewarding to ride. *Adjustable parts and their range of adjustability vary by model.
The Economical Riding Indicator is a mark appearing on the instrument panel to indicate favourable fuel consumption, encouraging fuel efficient riding.
Using high-precision electronic control for engine management, Kawasaki models can achieve a high level of fuel efficiency. However, fuel consumption is greatly affected by throttle use, gear selection, and other elements under the rider's control. The Economical Riding Indicator is a function that indicates when current riding conditions are consuming a low amount of fuel. The system continuously monitors fuel consumption, regardless of vehicle speed, engine speed, throttle position and other riding conditions. When fuel consumption is low for a given speed (i.e. fuel efficiency is high), an "ECO" mark appears on the instrument panel's LCD screen. By riding so that the "ECO" mark remains on, fuel consumption can be reduced. While effective vehicle speed and engine speed may vary by model, paying attention to conditions that cause the "ECO" mark to appear can help riders improve their fuel efficiency – a handy way to increase cruising range. Further, keeping fuel consumption low also helps minimise negative impact on the environment.
ABS (Anti-lock Brake System) ensures stable braking performance by preventing wheel lock during braking.
Sudden over-application of the brakes, or braking on low-grip surfaces (surfaces with a low coefficient of friction) such as wet asphalt or manhole covers may cause a motorcycle's wheel(s) to lock up and slip. ABS was developed to prevent such incidents. Kawasaki ABS systems are controlled by high precision and highly reliable programming formulated based on thorough testing of numerous riding situations. By ensuring stable braking performance, they offer rider reassurance that contributes to greater riding enjoyment. And to meet the special requirements of certain riders, specialised ABS systems are also available. For example, KIBS (Kawasaki Intelligent anti-lock Brake System) is a high-precision brake system designed specifically for supersport models, enabling sport riding to be enjoyed by a wider range of riders. And by linking the front and rear brakes, K-ACT (Kawasaki Advanced Coactive-braking Technology) ABS provides the confidence to enjoy touring on heavyweight models. Kawasaki is continually working on the development of other advanced ABS systems.
KCMF (Kawasaki Cornering Management Function) monitors engine and chassis parameters throughout the corner.
KCMF monitors engine and chassis parameters throughout the corner from entry, through the apex, to corner exit modulating brake force and engine power to facilitate smooth transition from acceleration to braking and back again, and to assist riders in tracing their intended line through the corner. KCMF oversees the following systems (where available): KTRC (including traction, wheelie and sliding control), KIBS (including pitching control), Kawasaki Engine Brake Control
Combined with Kawasaki’s proprietary dynamic modelling program, input from the IMU (Inertial Measurement Unit) enables even more precise chassis orientation awareness, the key to bringing Kawasaki’s electronics to the next level.
IMU means Enhanced Chassis Orientation Awareness. The strength of Kawasaki's cutting-edge electronics has always been the highly sophisticated programming that, using minimal hardware, gives the ECU an accurate real-time picture of what the chassis is doing. Kawasaki's proprietary dynamic modelling program makes skillful use of the magic formula tyre model as it examines changes in multiple parameters, enabling it to take into account changing road and tyre conditions. The addition of an IMU (Inertial Measurement Unit) enables inertia along 6 DOF (degrees of freedom) to be monitored. Acceleration along longitudinal, transverse and vertical axes, plus roll rate and pitch rate are measured. The yaw rate is calculated by the ECU. This additional feedback contributes to an even clearer real-time picture of chassis orientation, enabling even more precise management for control at the limit. With the addition of the IMU and the latest evolution of Kawasaki's advanced modelling software, Kawasaki's electronic engine and chassis management technology takes the step to the next level changing from setting-type and reaction-type systems to feedback-type systems to deliver even greater levels of riding excitement.
Power Mode selection allows engine power delivery to be changed to suit the riding situation.
Models equipped with multiple Power Modes offer riders an easily selectable choice of engine power delivery to suit riding conditions or preference. In addition to Full Power mode, one (Low) or two (Middle, Low) alternate mode(s) in which maximum power is limited and throttle response is milder are provided.
Smartphone connectivity contributes to an enhanced motorcycling experience by enabling riders to connect to their motorcycle wirelessly.
Clever technology enables riders to connect to their motorcycle wirelessly. Using the smartphone application RIDEOLOGY THE APP a number of instrument functions can be accessed, contributing to an enhanced motorcycling experience. Vehicle information (such as the odometer, fuel gauge, maintenance schedule, etc) can be viewed on the smartphone. Riding logs (varies by model, but may include GPS route, gear position, rpm, and other information) can be viewed on the smartphone. When connected, telephone (call, mail) notices are displayed on the instrument panel. Riders can also make changes to their motorcycle instrument display settings (preferred units, clock and date setting, etc) via the smartphone. And on certain models, it is even possible to check and adjust vehicle settings (such as Rider Mode, electronic rider support features, and payload settings) using the smartphone.
3-Mode KTRC (Kawasaki TRaction Control), Kawasaki's most advanced traction control system, offers a selection of modes to suit a variety of riding situations, from sport riding to touring.
3-mode KTRC combines the traction control technology of both 1-mode KTRC, which provides enhanced stability in slippery situations by preventing wheel slip, and S-KTRC, which helps maintain optimum traction in sport riding situations by predicting the rear wheel slip ratio during acceleration, into a single system. The convenient handle switch allows the type of traction control to be changed instantly by selecting one of the three modes, even while riding. Modes 1 and 2 maintain optimum traction during cornering, like S-KTRC. Designed with sport riding in mind, they enable sharp acceleration out of corners by maximizing forward drive from the rear wheel. Modes 1 and 2 differ in the amount that they intervene. Mode 1, set for dry, good-grip road conditions, maintains the ideal slip ratio to ensure optimum traction. Mode 3 operates like 1-mode KTRC, reducing power to allow grip to be regained when rear wheel spin is detected. It is ideal when riding in slippery conditions or in the wet. Enabling riders to easily change traction control character, 3-mode KTRC is Kawasaki's most advanced engine management system.
Based on racing technology, the Assist & Slipper Clutch acts as both a back-torque limiter and a self-servo mechanism that enables a lighter clutch lever pull.
Based on feedback from racing activities, the Assist & Slipper Clutch uses two types of cams (an assist cam and a slipper cam) to either drive the clutch hub and operating plate together or apart. Under normal operation, the assist cam functions as a self-servo mechanism, pulling the clutch hub and operating plate together to compress the clutch plates. This allows the total clutch spring load to be reduced, resulting in a lighter clutch lever feel when operating the clutch. When excessive engine braking occurs as a result of quick downshifts (or an accidental downshift) the slipper cam comes into play, forcing the clutch hub and operating plate apart. This relieves pressure on the clutch plates to reduce back-torque and helps prevent the rear tyre from hopping and skidding. This race-style function is particularly useful when sport or track riding.
Designed to help riders maximise their acceleration on the circuit by enabling clutchless upshifts with the throttle fully open, KQS detects that the shift lever has been actuated and sends a signal to the ECU to cut ignition so that the next gear can be engaged without having to use the clutch. On models that offer clutchless downshifts, during deceleration the system automatically controls engine speed so that the next lower gear can be selected without operating the clutch.
Horizontal Back-link Rear Suspension arranges its shock unit horizontally, greatly contributing to efficient use of space and mass centralisation.
Compared to Kawasaki's traditional Uni-Trak rear suspension, which mounts the shock unit vertically, with Horizontal Back-link rear suspension, the shock unit is almost horizontal. Kawasaki's original suspension arrangement locates the shock unit very close to the bike's centre of gravity, greatly contributing to mass centralisation. And because there is no linkage or shock unit protruding beneath the swingarm, this frees up space for a larger exhaust pre-chamber (an exhaust expansion chamber situated just upstream of the silencer). With a larger pre-chamber, silencer volume can be reduced, and heavy exhaust components can be concentrated closer to the centre of the bike, further contributing to mass centralisation. The result is greatly improved handling. Another benefit is that the shock unit is placed far away from exhaust heat. Because it is more difficult for heat from the exhaust system to adversely affect suspension oil and gas pressure, suspension performance is more stable. Horizontal Back-link rear suspension offers numerous secondary benefits like this.
Sound tuning enhances the exhilaration a Kawasaki motorcycle offers by complementing the sensations the rider feels with a carefully crafted auditory component.
Kawasaki has long had a reputation for building great-sounding bikes – a characteristic inherent in Kawasaki’s engine architecture – but it is only recently that effort has been put into crafting a specific auditory experience though careful sound tuning of either the intake or exhaust system.
Designed specifically to allow riders to enjoy their motorcycles aurally as well as physically, the carefully crafted auditory notes can be the key components of the street riding exhilaration offered by models that have benefitted from sound tuning. Sound tuning can include conducting sound research, designing intake and exhaust system components based on acoustic test carried out in a sound room, and careful consideration of every detail of a system’s components to ensure a balance of performance and the desired sound.
Electronic Throttle Valves allow the ECU to deliver the ideal amount of fuel and air to the engine.
Kawasaki's fully electronic throttle actuation system enables the ECU to control the volume of both the fuel (via fuel injectors) and the air (via throttle valves) delivered to the engine. Ideal fuel injection and throttle valve position results in smooth, natural engine response and the ideal engine output. The system also makes a significant contribution to reduced emissions. Electronic throttle valves also enable more precise control of electronic engine management systems like S-KTRC and KTRC, and allow the implementation of electronic systems like KLCM, Kawasaki Engine Brake Control, and Electronic Cruise Control.
Electronic Cruise Control allows vehicle speed to be fixed. Rider support technology that helps reduce rider fatigue on long trips and contributes to increased touring comfort.
Electronic Cruise Control allows a desired speed (engine rpm) to be maintained with the simple press of a button. Once activated, the rider does not have to constantly apply the throttle. This reduces stress on the right hand when travelling long distances, enabling relaxed cruising and contributing to a high level of riding comfort.
ERGO-FIT is an interface system that allows a wide range of riders to feel at one with their machine.
Proper fit is key for rider comfort and control. However, the ideal fit varies from rider to rider, depending on their physical dimensions and riding style. ERGO-FIT is an interface system designed to allow riders to find their ideal riding position. Various points of the chassis interface (the handlebar, footpegs and seat, etc) can be adjusted through a combination of interchangeable parts and parts with adjustable positions. This enables a wide range of riders to find a riding position that offers both comfort and control. Feeling at one with their machine, they will be able to experience how Kawasaki machines are fun and rewarding to ride. *Adjustable parts and their range of adjustability vary by model.
The Economical Riding Indicator is a mark appearing on the instrument panel to indicate favourable fuel consumption, encouraging fuel efficient riding.
Using high-precision electronic control for engine management, Kawasaki models can achieve a high level of fuel efficiency. However, fuel consumption is greatly affected by throttle use, gear selection, and other elements under the rider's control. The Economical Riding Indicator is a function that indicates when current riding conditions are consuming a low amount of fuel. The system continuously monitors fuel consumption, regardless of vehicle speed, engine speed, throttle position and other riding conditions. When fuel consumption is low for a given speed (i.e. fuel efficiency is high), an "ECO" mark appears on the instrument panel's LCD screen. By riding so that the "ECO" mark remains on, fuel consumption can be reduced. While effective vehicle speed and engine speed may vary by model, paying attention to conditions that cause the "ECO" mark to appear can help riders improve their fuel efficiency – a handy way to increase cruising range. Further, keeping fuel consumption low also helps minimise negative impact on the environment.
ABS (Anti-lock Brake System) ensures stable braking performance by preventing wheel lock during braking.
Sudden over-application of the brakes, or braking on low-grip surfaces (surfaces with a low coefficient of friction) such as wet asphalt or manhole covers may cause a motorcycle's wheel(s) to lock up and slip. ABS was developed to prevent such incidents. Kawasaki ABS systems are controlled by high precision and highly reliable programming formulated based on thorough testing of numerous riding situations. By ensuring stable braking performance, they offer rider reassurance that contributes to greater riding enjoyment. And to meet the special requirements of certain riders, specialised ABS systems are also available. For example, KIBS (Kawasaki Intelligent anti-lock Brake System) is a high-precision brake system designed specifically for supersport models, enabling sport riding to be enjoyed by a wider range of riders. And by linking the front and rear brakes, K-ACT (Kawasaki Advanced Coactive-braking Technology) ABS provides the confidence to enjoy touring on heavyweight models. Kawasaki is continually working on the development of other advanced ABS systems.
Engine type | Liquid-cooled, 4-stroke, in-line four |
---|---|
Compression ratio | 11.8:1 |
Valve system | DOHC, 16 valves |
Bore x stroke | 73.4 x 56.0 mm |
Displacement | 948 cm³ |
Fuel system | Fuel injection: 36 mm x 4 |
Lubrication | Forced lubrication, wet sump |
Starting system | Electric |
Ignition system | Digital |
Maximum power | 91.0 kW {123.7 PS} / 9,500 rpm |
---|---|
Maximum torque | 97.4 N•m {9.9 kgf•m} / 7,700 rpm |
CO2 emission | 117 g/km |
Fuel consumption | 4.8 l/100km |
CO2 emission 85 kW kit | 117 g/km |
Fuel consumption 85 kW kit | 4.8 l/100km |
Transmission | 6-speed, return shift |
Clutch | Wet, multi disc |
Primary reduction ratio | 1.627 (83/51) |
Gear ratios 1st | 2.600 (39/15) |
Gear ratios 2nd | 1.950 (39/20 |
Gear ratios 3rd | 1.600 (24/15) |
Gear ratios 4th | 1.389 (25/18) |
Gear ratios 5th | 1.217 (28/23) |
Gear ratios 6th | 1.069 (31/29) |
Final drive | Sealed chain |
Final reduction ratio | 2.933 (44/15) |
Frame type | Tubular diamond, high-tensile steel |
---|---|
Trail | 110 mm |
Wheel travel front | 120 mm |
Wheel travel rear | 140 mm |
Tyre, front | 120/70 ZR17 M/C (58W) |
Tyre, rear | 180/55 ZR17 M/C (73W) |
L x W x H | 2,065 x 830 x 1,110 mm |
Steering angle L/R | 33° / 33° |
Wheel base | 1,450 mm |
Ground clearance | 145 mm |
Fuel capacity | 17.0 litres |
Seat height | 830 mm |
Curb mass | 214 kg |
Front brake type | Dual semi-floating Brembo discs |
---|---|
Front brake diameter | Ø 300 mm |
Front brake caliper type | Brembo radial-mount, M4.32 monobloc, opposed 4-piston |
Rear brake type | Single disc |
Rear brake diameter | Ø 250 mm |
Rear brake caliper type | Single-piston |
Front suspension type | Inverted fork with compression and rebound damping, and spring preload adjustability |
Front suspension diameter | Ø 41 mm |
Rear suspension type | Horizontal Back-link, Öhlins S46 gas-charged rear shock with rebound damping adjustability and remote spring preload adjustability |
